Filobox + PU resin

Go Back

The Filobox cable joint kit is suitable for sealing underground cable connections. The Filobox T40 + PU resin contains a 2K polyurethane resin. The PU resin cures to a hard high quality sealing compound which creates a durable seal around the cable connection.

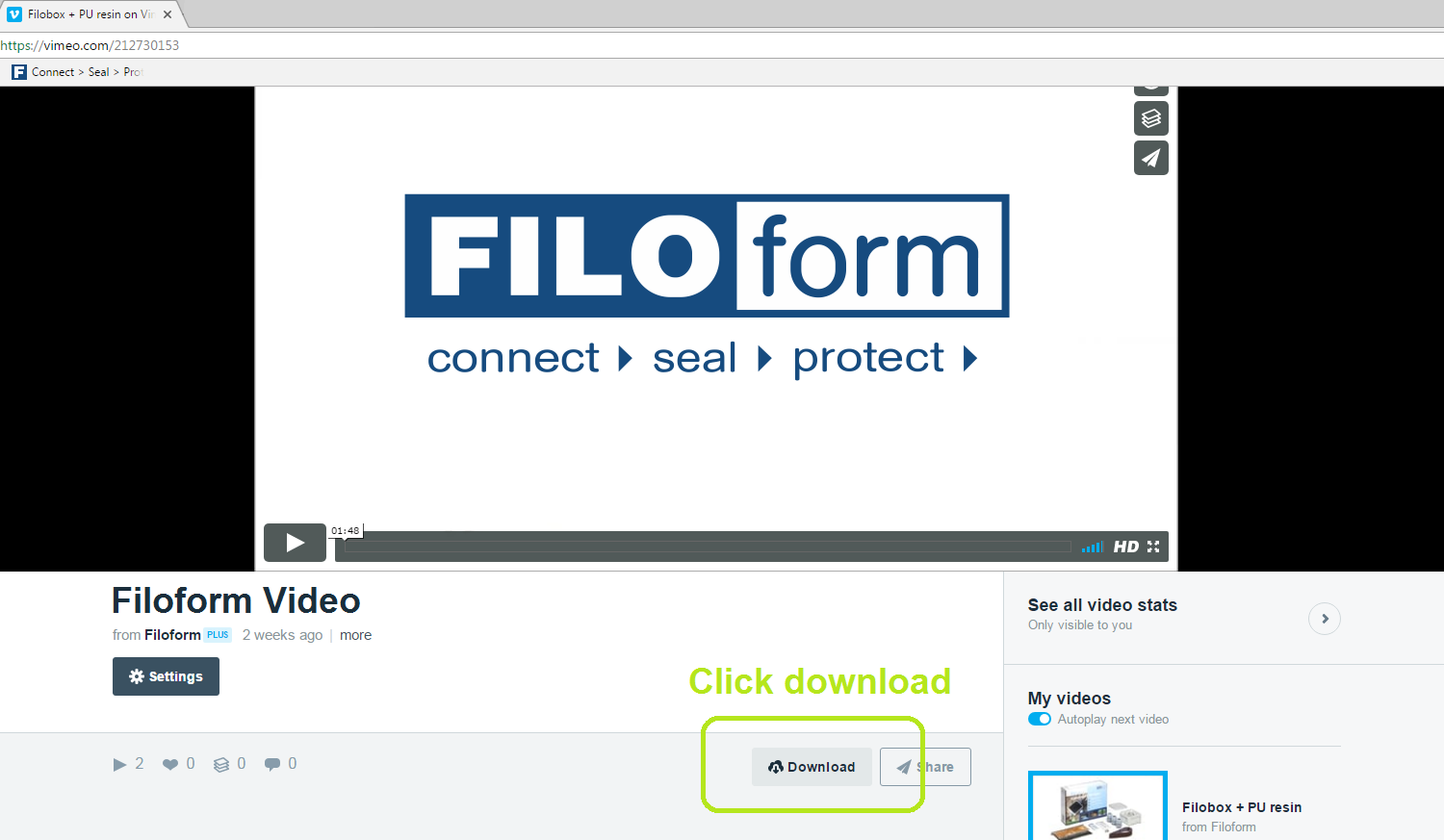

Watch the video on Youtube

  • Suitable for connecting LV electrical cables, telephone cables and more.
  • Filobox cable joints are especially suitable for outdoor- and underground applications or in a humid environment where and IP68 sealing is required
Download product sheet
  • Junction box with 3 cable glands M25
  • Usable for cables with diameter 9-17mm
  • Contains polyurethane resin Filofill P2654
  • The PU resin has excellent adhesive strength on metal and synthetic material
  • Simple and quick installation
  • Horizontal and vertical installation possible
  • Optimal electrical protection
  • PU resin is black
  • Waterproof
  • The PU resin is not re-enterable
Material resinpolyurethane (Filofill P2654)
Temperature range-25°C up to +120°C
Outer dimensions90mm x 90mm x 52mm
Inner dimensions77mm x 77mm x 46mm
Cable glandM25
Cable sizeDiameter 9-17mm
IP-valueIP 68 according to EN 60529: 1989+A1: 1999
More Information
More information

Download: Mixing instructions resin


Home page product list No
Grouped product items
Sku Product Name Cable diameter (mm) Dimensions (mm)

Enter the quantities you want to order / request.

Keep the quantities equal to the Order unit

Order unit
801604 Filobox + PU Ø 09 - 17 77x77x46 Order unit 50 pcs.+
