Divisible duct repair kit
The FILOform divisible duct repair kit is suitable for connecting and repairing subducts which contain a cable. Our divisible sealing system enables you to install it easily onto to existing installations.

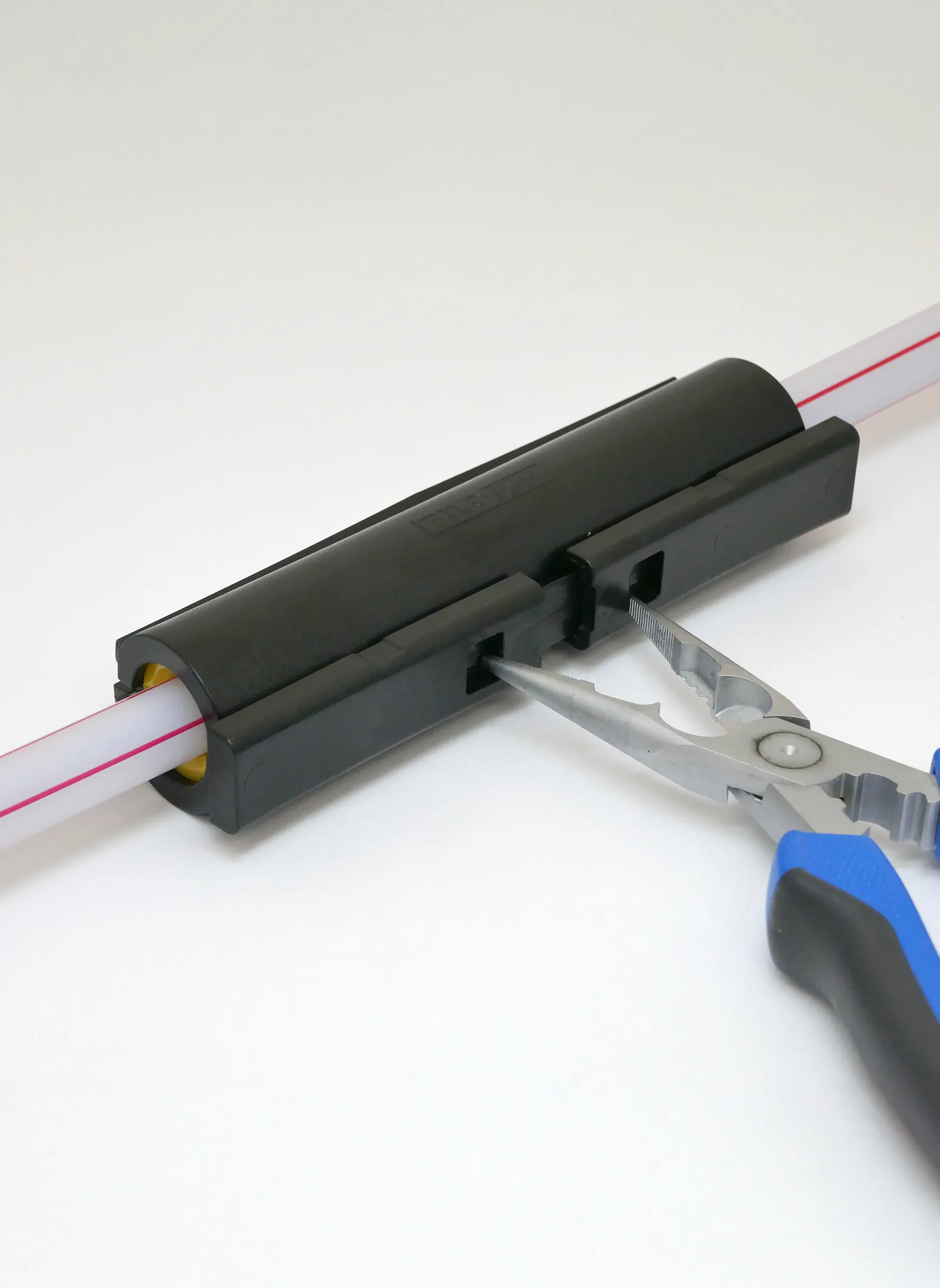

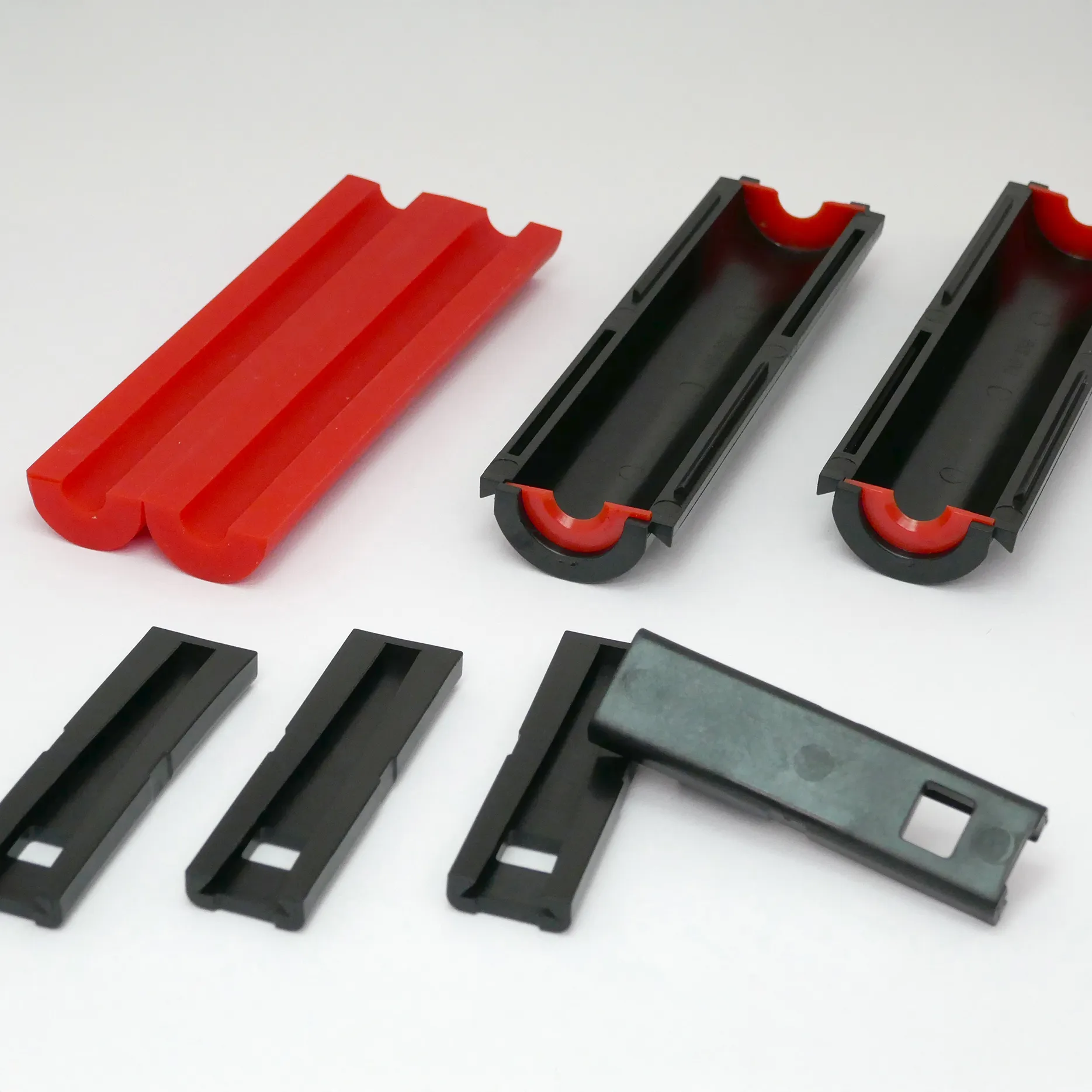

By applying the locking keys onto the shells the silicon insert is compressed and creates a firm gas and watertight seal and also creates a high strain relief on the ducts.
The divisible connectors can also be used as a gas block connector. Please contact our sales department for more information.
| SKU | Product name | Order unit |
|---|---|---|
| 7823505 | Divisible duct repair kit 5mm | 10 pcs/carton |
| 7823507 | Divisible duct repair kit 7mm | 10 pcs/carton |
| 7823508 | Divisible duct repair kit 8mm | 10 pcs/carton |
| 7823510 | Divisible duct repair kit 10mm | 10 pcs/carton |
| 7823512 | Divisible duct repair kit 12mm | 10 pcs/carton |
| 7823514 | Divisible duct repair kit 14mm | 10 pcs/carton |
| 7823516 | Divisible duct repair kit 16mm | 10 pcs/carton |
| 7823520 | Divisible duct repair kit 20mm | 10 pcs/carton |
- Gas and watertight up to 0,5 bar
- During 30 minutes up to 10 bar
- For connecting and repairing of damaged ducts
- Applicable for direct burying
- Suitable for retro fitting
- Easy installation
- Slim design
- Rubbers seals with color coding

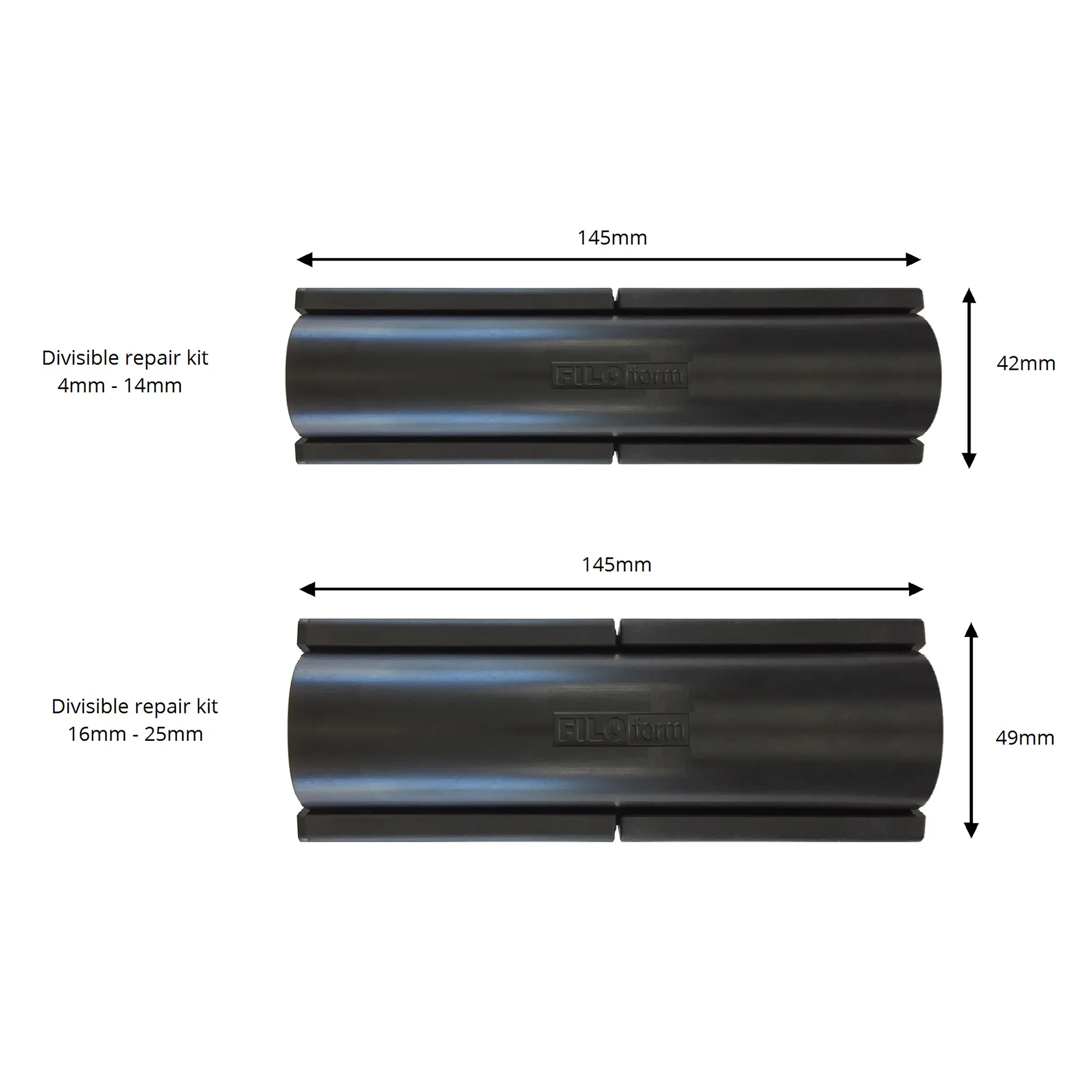

| Dimensions | |
|---|---|
| Divisible repair kit 5 / 7 / 8 / 10 / 12 / 14 / 16mm | 42mm x 145mm |
| Divisible repair kit 18 / 20 / 25 | 49mm x 145mm |
| Material specifications | |
|---|---|
| Material shells + closing keys | Glass fibre reinforced PA |
| Material insert | TPE |
| Gas and watertight | 0,5 bar |
| Pull strength duct seal from the duct | |
|---|---|
| Duct size (OD) | Value (N) |
| 5 | >100 N |
| 7 | >125 N |
| 8 | >160 N |
| 10 | >200 N |
| 12 | >250 N |
| 14 | >350 N |
| 16 | >500 N |
| 20 | >550 N |
The measure-speed is 100mm/min
Temperature 20°C
