Heat-shrink end caps

Go Back

  • Indoor / Outdoor underground, above ground, under water, in cable ducts
Download product sheet
  • Excellent adhesion on all plastic insulated cables and metal components
  • Hot melt coating inside
  • Polyolefine crosslinked
  • Fast recovery
  • Shrink temperature 70°C till 100°C
  • Continuous temperature range from -40°C till +100°C
  • Good resistance against UV and chemicals
  • Corrosion resistant
  • Cadnium free and halogen free
  • No shelf-life
  • Colour: black

krimpdoppen

CharacteristicsUnitValueStandard
Physical characteristics
Shrink temperature°C> 125
Densityg / cm³> 1,01DIN 53479 / ISO 1183
Tensile strengthN / mm²12IEC-540
ElasticityN / mm²70IEC-527
Elongation at break%300IEC-540
HardnessShore D42DIN 53505 / ISO 868
Flexibility at low temperaturesASTM D 2671
Thermal characteristics
Altering(168h/150°C)ISO 188
Continuous temperature limit°C-40 till +100DIN 53 446
Electrical characteristics
Dielectric strengthkV / mm> 10IEC-243
Volume resistivityOhm x cm> 1 x 10₁₂IEC-93 / ASTM D-257
Chemical characteristics
CorrosiongeenASTM D 2671
Waterabsorbtion%< 0,05DIN 53 495/1L
Chemical resistance during 24h/23°C in Trafo-oil, Petroleum ISO 1817Scale 1ISO 846
Adhesive
Waterabsorbtion%< 0,15DIN 53 495
Dielectric strengthkV / mm> 12VDE 0303
AdhesionDIN 30672
to PEN / cm> 350
to PVCN / cm> 150
to PUN / cm> 200
op Zn, Cu and staalN / cm> 300
More Information
Home page product list No
Products
Grouped product items

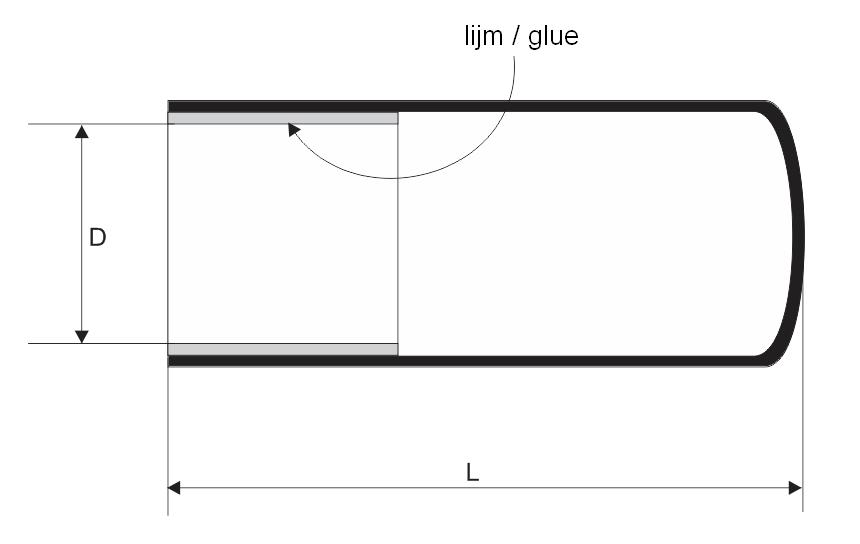

Sku Product Name Application cable diameter (mm) Diamater before shrink (mm) Diameter after shrinkage (mm) Length (mm)

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
800201 Heat-shrink end cap type 1 4,0 > 8,0 12 4 38 Order unit 100 pcs/bag
800202 Heat-shrink end cap type 2 8,0 > 18,0 20 7,5 75 Order unit 50 pcs/bag
800203 Heat-shrink end cap type 3 15,0 > 38,0 40 15 90 Order unit 10 pcs/bag
800204 Heat-shrink end cap type 4 25,0 > 50,0 55 25 124 Order unit 5 pcs/bag
8002045 Heat-shrink end cap type 4B 35,0 > 70,0 75 35 140 Order unit 5 pcs/bag
800205 Heat-shrink end cap type 5 45,0 > 95,0 100 45 157 Order unit 5 pcs/bag
8002055 Heat-shrink end cap type 5B 45,0 > 115,0 120 45 200 Order unit 2 pcs/bag
800207L Heat-shrink end cap type 7L 65,0 > 150,0 155 63 300 Order unit 2 pcs/bag
