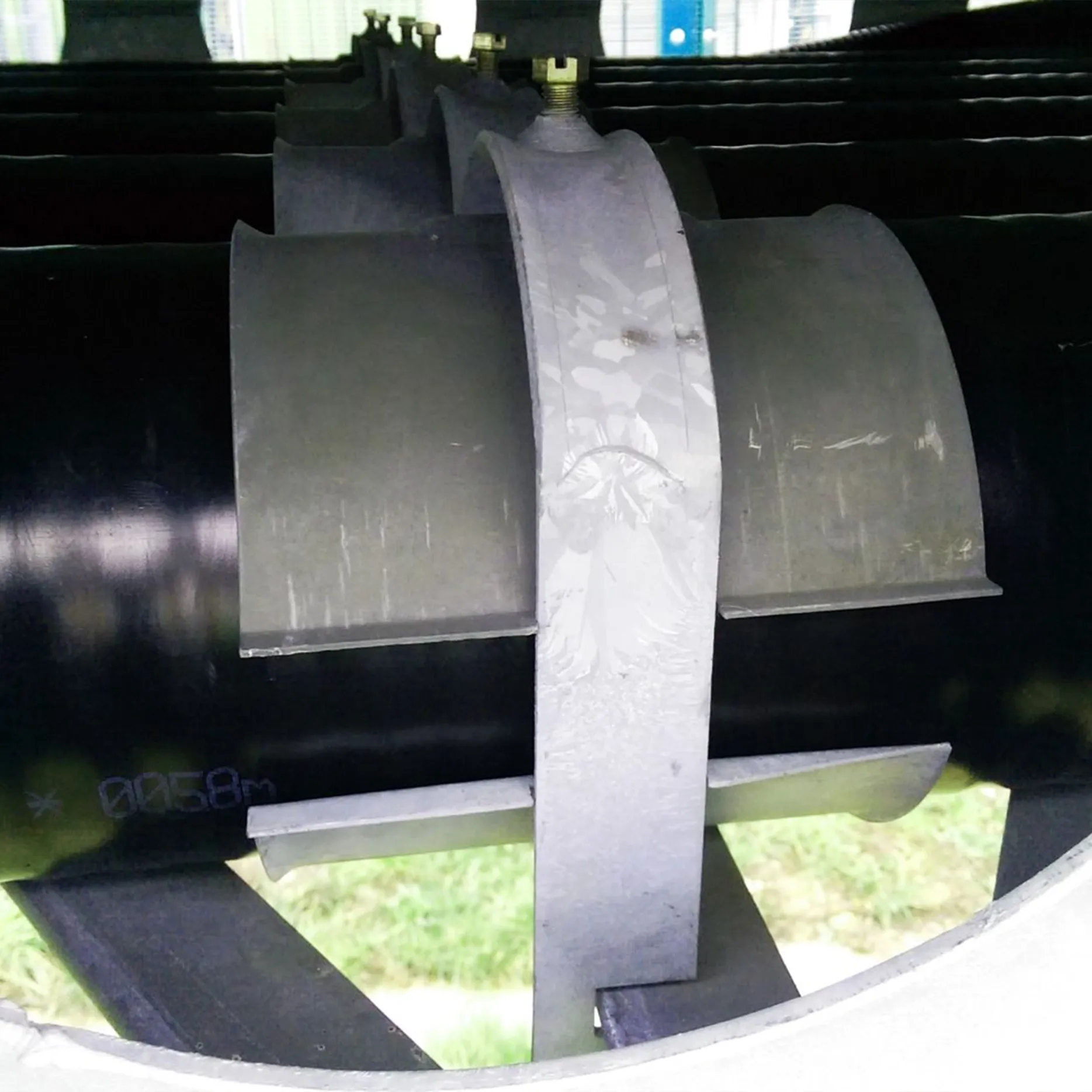

Cable clamp rail – single clamp

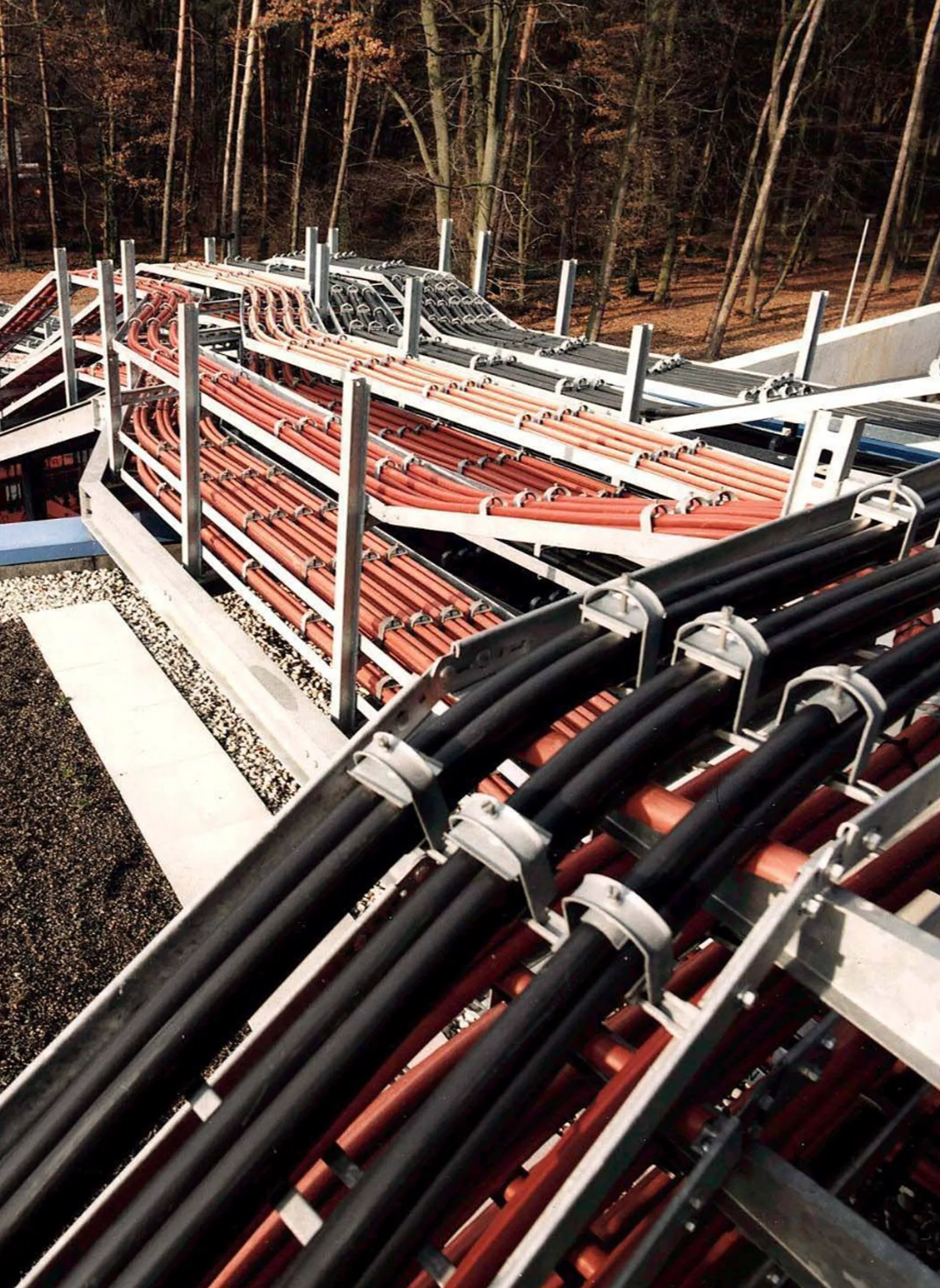

Filoform supply a full range of Network Rail approved cable clamps, suitable for the direct fixing of both individual and bundled cables. Manufactured from Hot Dip Galvanised Steel, the clamps offer excellent protection against corrosion.
| SKU | Product Name | Order Unit |
|---|---|---|
| 86/043600 | Single clamp (cable range, 12 – 16mm O/D) | per clamp |
| 86/043601 | Single clamp (cable range, 16 – 20mm O/D) | per clamp |
| 86/043602 | Single clamp (cable range, 20 – 24mm O/D) | per clamp |
| 86/043603 | Single clamp (cable range, 24 – 28mm O/D) | per clamp |
| 86/043604 | Single clamp (cable range, 28 – 32mm O/D) | per clamp |
| 86/043605 | Single clamp (cable range, 32 – 36mm O/D) | per clamp |
- Hot Dip Galvanised Steel
- Manufactured in accordance with DIN 4102-12
- Network Rail Approved
- Cable range 12mm to 36mm accepted
- Suitable for single or double cable configurations
Filoform’s range of single-bolt fixing clamps, counterbeds and fixings are manufactured from galvanized steel,non magnetic aluminum or grade 1 stainless steel.
Special variant cable clamps including troughs and “J” hooks have been developed to address the specific needs of the rail industry with Network Rail PADS approval.
| Pad number | FILOform part number | Clamp type | Cable range min (mm) | Cable range max (mm) | Pack quantity (mm) |
|---|---|---|---|---|---|
| 86/043600 | 460000 | Single | 12 | 16 | 1 |
| 86/043601 | 460010 | Single | 16 | 20 | 1 |
| 86/043602 | 460020 | Single | 20 | 24 | 1 |
| 86/043603 | 460030 | Single | 24 | 28 | 1 |
| 86/043604 | 460040 | Single | 28 | 32 | 1 |
| 86/043605 | 460050 | Single | 32 | 36 | 1 |
