Constant force springs
Constant force springs are the ideal method to complete electrical continuty across the joint on armoured power cables for straight or branch joints.
Using constant force springs is an easy and reliable way to earth the cable joint as they constantly exert pressure on the earth braid to achieve a reliable continuity.
All our springs are manufactured from Stainless Steel to BS EN 10151, Grade 1.4310
| SKU | Product Name | Order Unit |
|---|---|---|
| 860070 | CFS – 4mm | 10 pcs/bag |
| 860000 | CFS0 – 7.5mm | 10 pcs/bag |
| 860010 | CFS1 – 11mm | 10 pcs/bag |
| 860020 | CFS2 – 15mm | 10 pcs/bag |
| 860030 | CFS3 – 18mm | 10 pcs/bag |
| 860040 | CFS4 – 24mm | 10 pcs/bag |
| 860050 | CFS5 – 31mm | 10 pcs/bag |
| 860060 | CFS6 – 42mm | 10 pcs/bag |
- The constant force spring is a resilient, rolled up spring.
- Provides a constant and lasting force to the connection
- Manufactured from stainless steel EN standard 1.4310

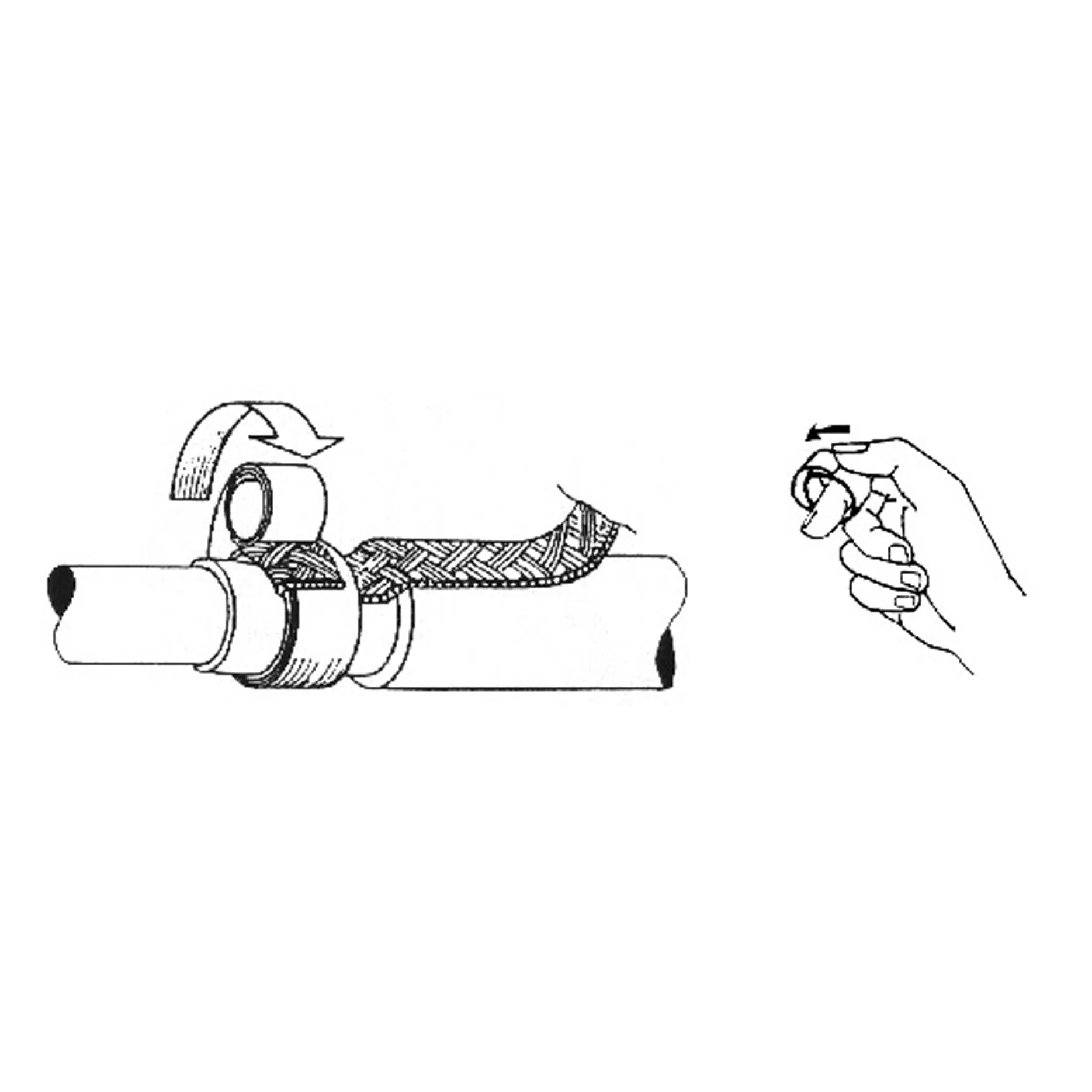

- The spring can be applied by hand without any tools
- Corrosion resistant
- The sheating needs to be positioned under and on top of the first turn
- In a cable joint, the constant force spring is protected by self fusing insulation tape
| CFS | CF SPRING 5.0-10.0mm | 6.4 | 4.65 |
| CFS0 | CF SPRING 9.0-15.0mm | 9.0 | 7.46 |
| CFS1 | CF SPRING 14.0-22.0mm | 12.5 | 10.8 |
| CFS2 | CF SPRING 18.5-29.0mm | 16.7 | 14.9 |
| CFS3 | CF SPRING 23.5-37.0mm | 19.9 | 17.8 |
| CFS4 | CF SPRING 31.0-50.0mm | 26.6 | 23.3 |
| CFS5 | CF SPRING 44.0-70.0mm | 35.8 | 30.0 |
| CFS6 | CF SPRING 58.0-94.0mm | 48.2 | 41.3 |
| CFS7 | CF SPRING 60.0-130.0mm | 55.7 | 45.2 |
