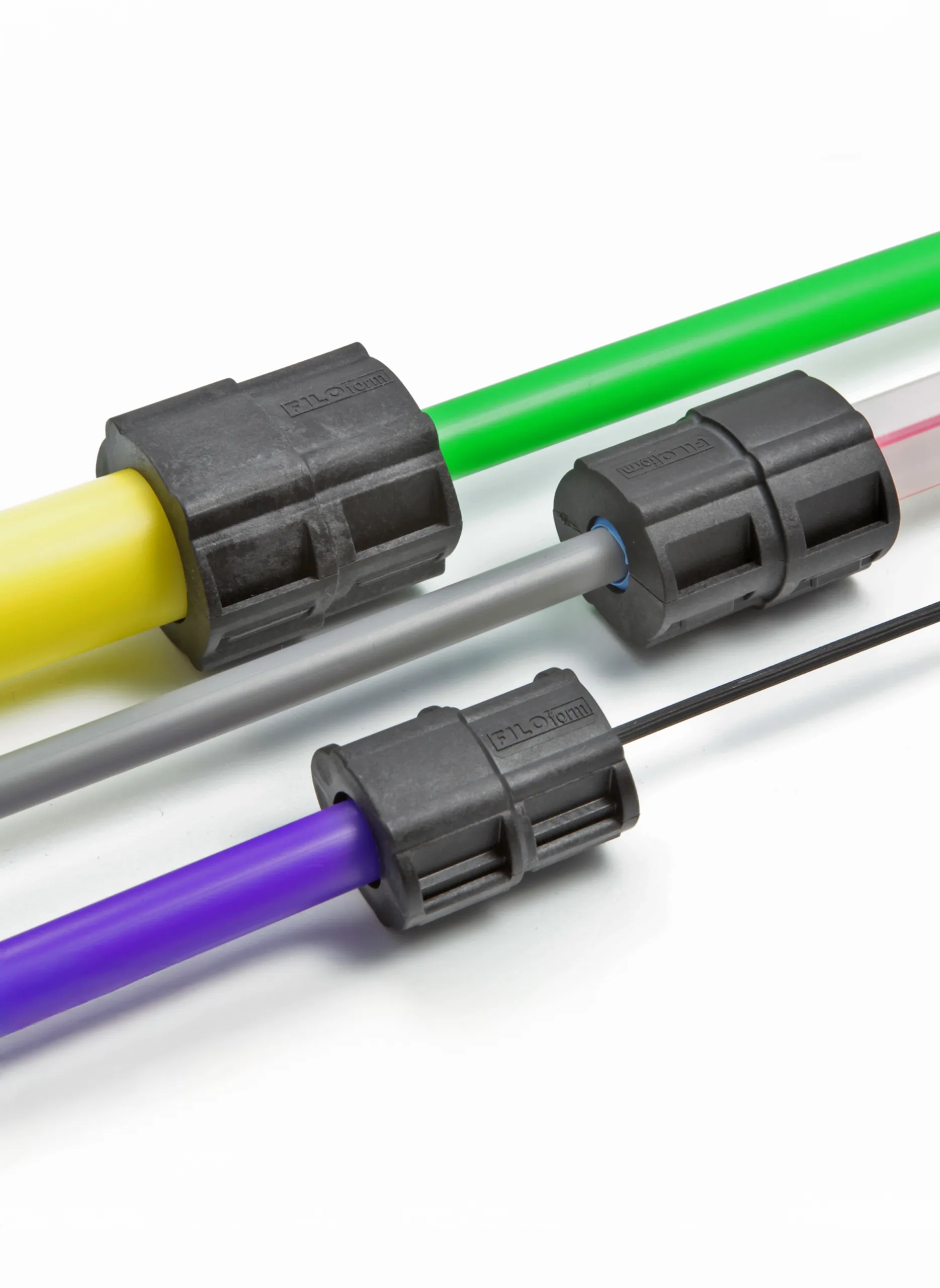

Divisible duct seals 10mm – 25mm

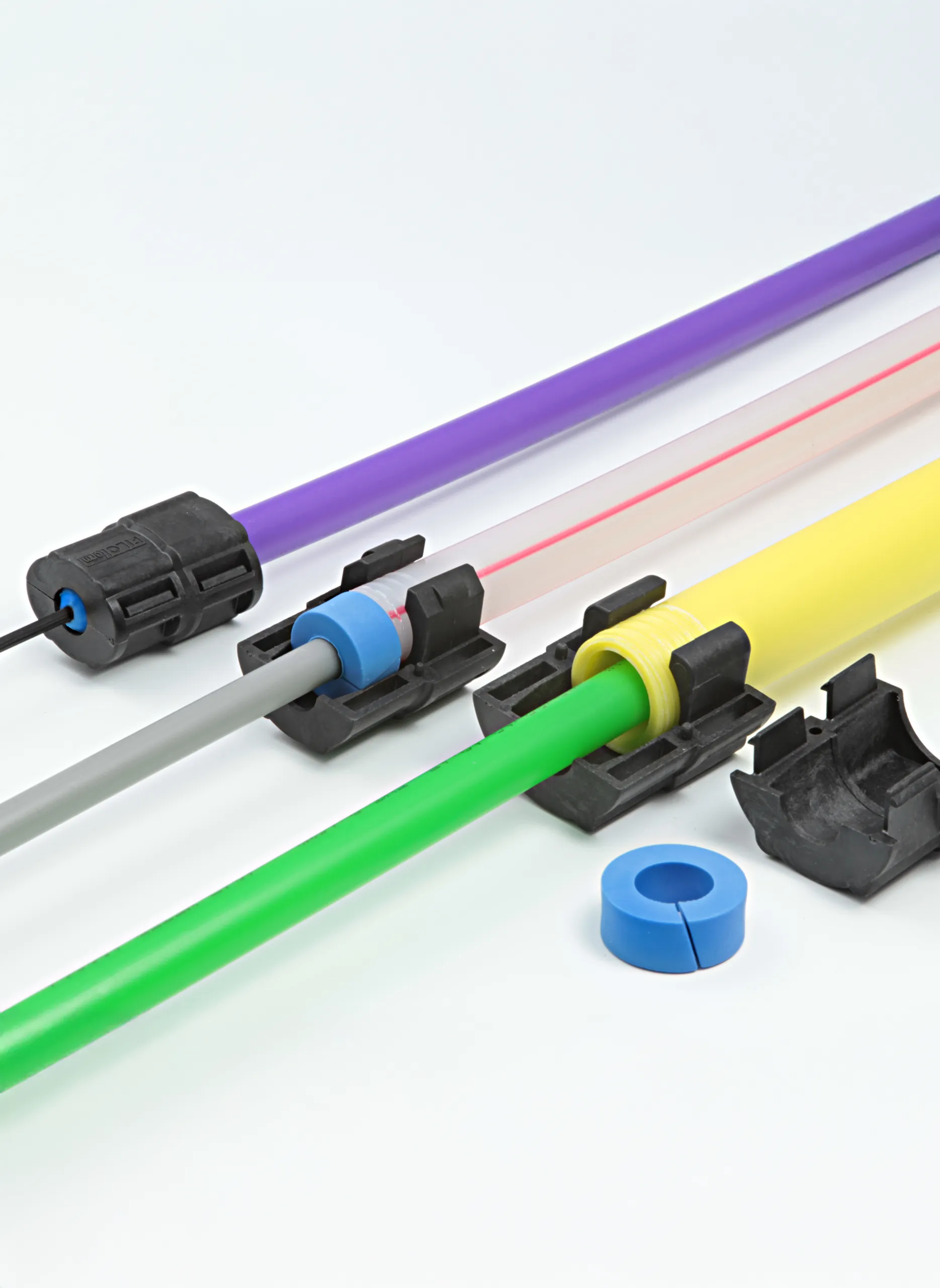

Filoform divisible duct sealing sets for subducts have been developed to provide and effective and simple solution to all Gas and Watertight duct sealing requirements.
This modular system enables you to install it easily onto to new and existing installations. Due to the compact design the seals can be installed in all situations, even in locations with difficult access.
For use on subducts of 10mm.
PATENTED
| SKU | Product name | Colour | Cable Diameter (mm) | Order unit |
|---|---|---|---|---|
| 50200107 | Duct seal 10mm / 2.5 > 1.5mm | Purple | 2,5-1,5 | 25 pcs/carton |
| 50200109 | Duct seal 10mm / 3.5 > 2.5mm | Blue | 3,5-2,5 | 25 pcs/carton |
| 50204966 | Duct seal 10mm / 5.0 > 3.5mm | Green | 5,0-3,5 | 25 pcs/carton |
| 50200111 | Duct seal 10mm / 6.5 > 5.0mm | Red | 6,5-5,0 | 25 pcs/carton |
| 50204972 | Duct seal 10mm / 7.5 > 6.5mm | Blue | 7,5-6,5 | 25 pcs/carton |
| 50205884 | Duct seal 12mm / 2.5 > 1.5mm | Purple | 2.5-1.5 | 25 pcs/carton |
| 50204977 | Duct seal 12mm / 3.5 > 2.5mm | Blue | 3.5-2.5 | 25 pcs/carton |
| 50200115 | Duct seal 12mm / 5.0 > 3.5mm | Green | 5.0-3.5 | 25 pcs/carton |
| 50200116 | Duct seal 12mm / 6.5 > 5.0mm | Red | 6.5-5.0 | 25 pcs/carton |
| 50200118 | Duct seal 12mm / 8.0 > 6.5mm | Blue | 8.0-6.5 | 25 pcs/carton |
| 50204987 | Duct seal 12mm / 8.5 > 7.0mm | Blue | 8.5-7.0 | 25 pcs/carton |
| 50200129 | Duct seal 14mm / 2.5 > 1.5mm | Purple | 2.5-1.5 | 25 pcs/carton |
| 50205003 | Duct seal 14mm / 3.5 > 2.5mm | Yellow | 3.5-2.5 | 25 pcs/carton |
| 50200121 | Duct seal 14mm / 5.0 > 3.5mm | Green | 5.0-3.5 | 25 pcs/carton |
| 50200122 | Duct seal 14mm / 6.5 > 5.0mm | Red | 6.5-5.0 | 25 pcs/carton |
| 50200125 | Duct seal 14mm / 8.0 > 6.5mm | Blue | 8.0-6.5 | 25 pcs/carton |
| 50200127 | Duct seal 14mm / 10.0 > 8.0mm | Grey | 10.0-8.0 | 25 pcs/carton |
| 50205012 | Duct seal 16mm / 2.5 > 1.5mm | Purple | 2.5-1.5 | 25 pcs/carton |
| 50205014 | Duct seal 16mm / 3.5 > 2.5mm | Yellow | 3.5-2.5 | 25 pcs/carton |
| 50205886 | Duct seal 16mm / 5.0 > 3.5mm | Green | 5.0-3.5 | 25 pcs/carton |
| 50200131 | Duct seal 16mm / 6.5 > 5.0mm | Red | 6.5-5.0 | 25 pcs/carton |
| 50200134 | Duct seal 16mm / 8.0 > 6.5mm | Blue | 8.0-6.5 | 25 pcs/carton |
| 50200136 | Duct seal 16mm / 10.0 > 8.0mm | Grey | 10.0-8.0 | 25 pcs/carton |
| 50200144 | Duct seal 18mm / 5.0 > 3.5mm | Green | 5.0-3.5 | 25 pcs/carton |
| 50200142 | Duct seal 18mm / 6.5 > 5.0mm | Red | 6.5-5.0 | 25 pcs/carton |
| 50205019 | Duct seal 18mm / 8.0 > 6.5mm | Blue | 8.0-6.5 | 25 pcs/carton |
| 50205017 | Duct seal 18mm / 9.5 > 8.0mm | Grey | 9.5-8.0 | 25 pcs/carton |
| 50200139 | Duct seal 18mm / 12.0 > 9.4mm | Black | 12.0-9.4 | 25 pcs/carton |
| 50205033 | Duct seal 20mm / 5.0 > 3.5mm | Green | 5.0-3.5 | 25 pcs/carton |
| 50205031 | Duct seal 20mm / 6.5 > 5.0mm | Red | 6.5-5.0 | 25 pcs/carton |
| 50200150 | Duct seal 20mm / 8.0 > 6.5mm | Blue | 8.0-6.5 | 25 pcs/carton |
| 50200148 | Duct seal 20mm / 10.0 > 8.0mm | Grey | 10.0-8.0 | 25 pcs/carton |
| 50200146 | Duct seal 20mm / 12.0 > 9.4mm | Black | 12.0-9.4 | 25 pcs/carton |
| 50200152 | Duct seal 25mm/3,7-4,7mm | Grey | 3.7-4.7 | 25 pcs/carton |
| 50200153 | Duct seal 25mm/4,7-6,5mm | Pink/Blue | 4.7-6.5 | 25 pcs/carton |
| 50200154 | Duct seal 25mm/6,5-8,5mm | White | 6.5-8.5 | 25 pcs/carton |
| 50200155 | Duct seal 25mm/8,5-10mm | Red | 8.5-10 | 25 pcs/carton |
| 50200156 | Duct seal 25mm/10-12mm | Green | 10.0-12.0 | 25 pcs/carton |
| 50200158 | Duct seal 25mm/12-14mm | Yellow | 12.0-14.0 | 25 pcs/carton |
- Gas and Watertight up to 0.50 bar
- Suitable for retrofitting.
- Easy installation.
- Slim design.
- Other versions available upon request.
| Dimensions | A (mm) | B (mm) | Weight (gr.) |
|---|---|---|---|
| Duct seal 10mm | 30 | 24 | 12 |
| Material specification | |
|---|---|
| Properties | Value |
| Plastic scales | Glassfibre reinforced |
| Cutting block | Glassfibre reinforced |
| Sealing plug | Silicone |
| Sealing | up to 0,5 bar |
| Pull-out force duct seal vs duct | ≥ 100N |
| Mechanical compression strength | ≥ 1000N, 10 sec. |

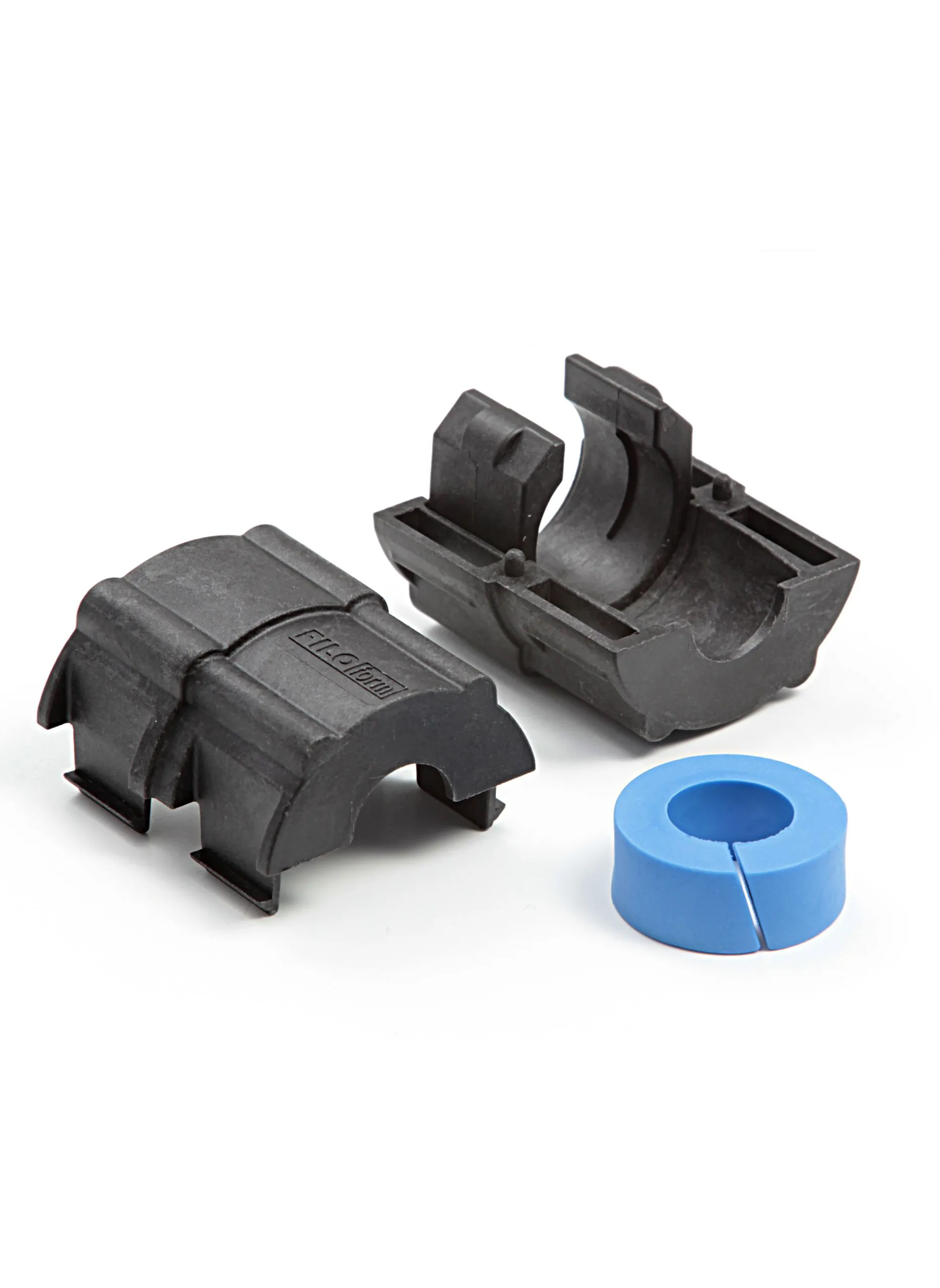

Contents
- 2 pieces of plastic shells with click together fixings
- 1 piece cutting block
- 1 rubber seal

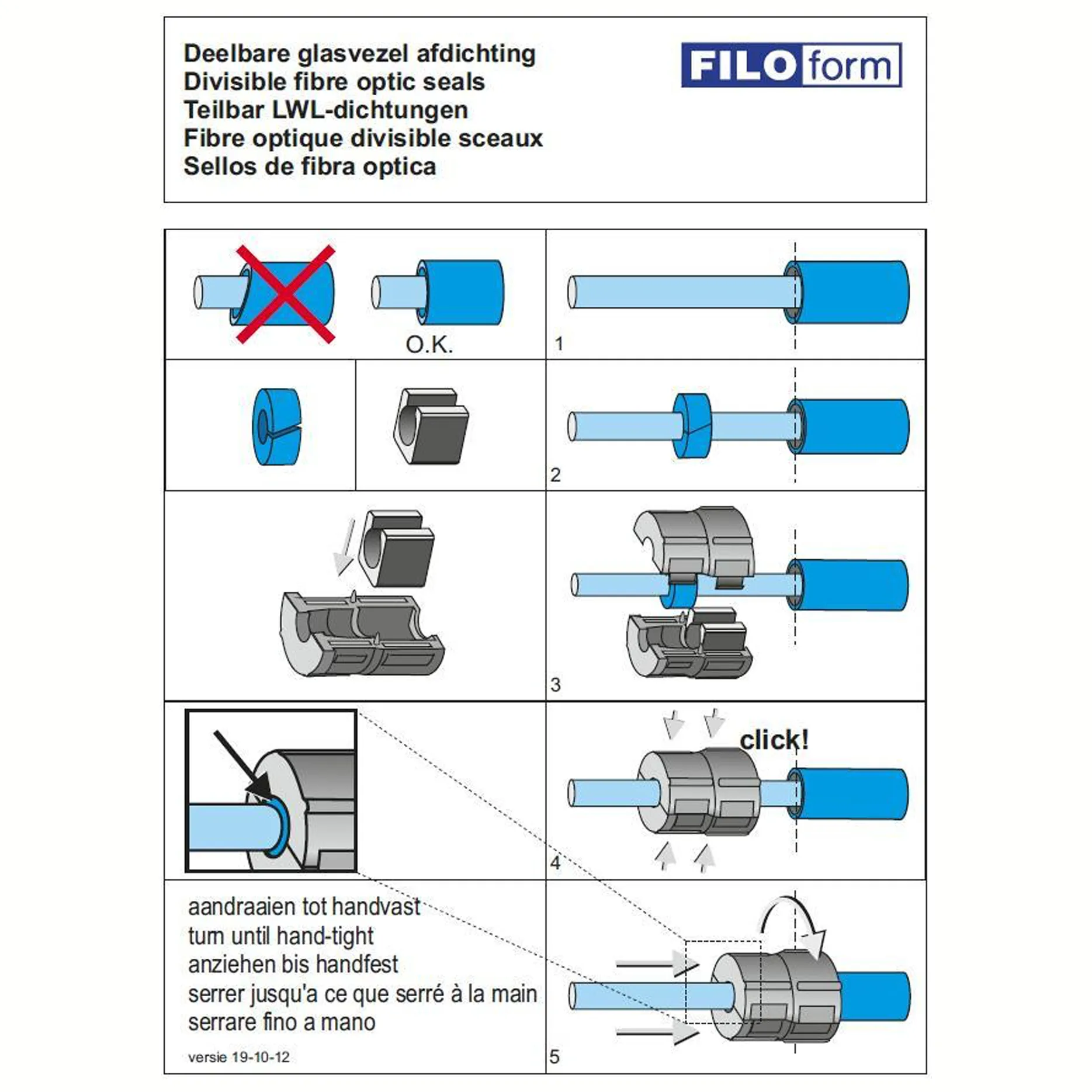

- Illustrated installation instructions
