Divisible duct seals (HDPE) 32mm – 63mm
Suitable for Gas and Watertight sealing of 63mm HDPE ducts, which contain mini/micro ducts and / or (fibre optic) cables.
The modular system will guarantee easy installation of various different cable and duct configurations. Our system is divisible so can be applied at installation or afterwards.
The rubber inserts can be custom designed for your specific needs and configuration and will contain (temporary) blind plugs to make the system more flexible at the installation site.
| SKU | Product name | Configuration | Order unit |
|---|---|---|---|
| 32mm Duct seal HDPE 12x4mm | 12x4mm | 20 pcs/carton | |
| 50204886 | 32mm Duct seal HDPE 2×7+1x12mm | 2×7+1x12mm | 20 pcs/carton |
| 32mm Duct seal HDPE 7x7mm | 7x7mm | 20 pcs/carton | |
| 50204833 | 32mm Duct seal HDPE 1x10mm+3x7mm | 1x10mm+3x7mm | 20 pcs/carton |
| 32mm Duct seal HDPE 2x10mm+1xC8-14mm | 2x10mm+1C8-14mm | 20 pcs/carton | |
| 50204841 | 32mm Duct seal HDPE 3x10mm | 3x10mm | 20 pcs/carton |
| 50204863 | 32mm Duct seal HDPE 4x10mm | 4x10mm | 20 pcs/carton |
| 50204907 | 32mm Ductseal HDPE 1xC11-16-22mm | 1xC11-16mm | 20 pcs/carton |
| 50204834 | 32mm Duct seal HDPE 12+10+7,5mm | 1x12mm+1x10mm+1×7,5mm | 20 pcs/carton |
| 50204872 | 32mm Duct seal HDPE 3x12mm | 3x12mm | 20 pcs/carton |
| 50204857 | 32mm Duct seal HDPE 1x14mm | 1x14mm | 20 pcs/carton |
| 50204826 | 40mm Duct seal HDPE 24x4mm | 24x4mm | 10 pcs/carton |
| 40mm Duct seal HDPE 2×7+1x12mm | 2×7+1x12mm | 10 pcs/carton | |
| 40mm Ductseal HDPE 7×7+7x3mm | 7x7mm+7x3mm | 10 pcs/carton | |
| 50204822 | 40mm Duct seal HDPE 8x7mm+12mm | 8x7mm + 1x12mm | 10 pcs/carton |
| 50204828 | 40mm Duct seal HDPE 10x7mm | 10x7mm | 10 pcs/carton |
| 50204846 | 40mm Duct seal HDPE 1x10mm+3x7mm | 1x10mm +3x7mm | 10 pcs/carton |
| 50204865 | 40mm Duct seal HDPE 3x10mm+1C8-18mm | 3x10mm + 1C8-18mm | 10 pcs/carton |
| 50204846 | 40mm Ductseal HDPE 4×10+4×7 mm | 4x10mm+4x7mm | 10 pcs/carton |
| 50204900 | 40mm Duct seal HDPE 4×10+1C6-14mm | 4x10mm+1C6-14mm | 10 pcs/carton |
| 50204843 | 40mm Duct seal HDPE 5x10mm | 5x10mm | 10 pcs/carton |
| 50204862 | 40mm Duct seal HDPE thin wall 7x10mm | 7x10mm | 10 pcs/carton |
| 50204908 | 40mm Duct seal HDPE 1xC11-16-22mm | 1xC11-16mm | 10 pcs/carton |
| 50204865 | 40mm Duct seal HDPE 2x12mm+1C8-18mm | 2x12mm + 1C8-18mm | 10 pcs/carton |
| 50204830 | 40mm Duct seal HDPE 4x12mm | 4x12mm | 10 pcs/carton |
| 50204894 | 40mm Duct seal HDPE 1×14 mm | 1x14mm | 10 pcs/carton |
| 50204847 | 40mm Duct seal HDPE 3x14mm | 3x14mm | 10 pcs/carton |
| 50204904 | 40mm Duct seal HDPE 1x24mm | 1x24mm | 10 pcs/carton |
| 50204876 | 50mm Duct seal HDPE 7x7mm+1C8-18,5mm | 7x7mm+1C8-18,5mm | 10 pcs/carton |
| 50204875 | 50mm Duct seal HDPE 8x7mm+1x14mm | 8x7mm+1x14mm | 10 pcs/carton |
| 50mm Duct seal HDPE 8×7+1x16mm | 8×7+1x16mm | 10 pcs/carton | |
| 50mm Duct seal HDPE 10x7mm+12mm | 10x7mm+12mm | 10 pcs/carton | |
| 50204882 | 50mm Duct seal HDPE 12x7mm+1x14mm | 12x7mm+1x14mm | 10 pcs/carton |
| 50204853 | 50mm Duct seal HDPE 18x7mm | 18x7mm | 10 pcs/carton |
| 50204876 | 50mm Duct seal HDPE 5x10mm+1C8-18,5mm | 5x10mm+1C8-18,5mm | 10 pcs/carton |
| 50204836 | 50mm Duct seal HDPE 7x10mm | 7x10mm | 10 pcs/carton |
| 50204889 | 50mm Duct seal HDPE 8x10mm | 8x10mm | 10 pcs/carton |
| 50204880 | 50mm Duct seal 9x10mm thin wall | 9x10mm | 10 pcs/carton |
| 50204909 | 50mm Ductseal HDPE 1xC11-16mm | 1xC11-16mm | 10 pcs/carton |
| 50204876 | 50mm Duct seal HDPE 5x12mm+1C8-18,5mm | 5x12mm+1C8-18,5mm | 10 pcs/carton |
| 50204850 | 50mm Duct seal HDPE 7x12mm | 7x12mm | 10 pcs/carton |
| 50204858 | 50mm Duct seal 7x14mm thin wall | 7x14mm | 10 pcs/carton |
| 50204835 | 50mm Duct seal HDPE 15,5mm+3x12mm | 15,5mm+3x12mm | 10 pcs/carton |
| 50204871 | 50mm Duct seal HDPE 4x16mm | 4x16mm | 10 pcs/carton |
| 50204891 | 50mm Ductseal HDPE 2x20mm | 2x20mm | 10 pcs/carton |
| 50204868 | 63mm Duct seal HDPE 22x7mm+1x12mm | 22x7mm+1x12mm | 10 pcs/carton |
| 63mm Duct seal HDPE 24x7mm+14mm | 24x7mm+14mm | 10 pcs/carton | |
| 63mm Duct seal HDPE 24x7mm | 24x7mm | 10 pcs/carton | |
| 50204873 | 63mm Duct seal 15x10mm thin wall | 15x10mm | 10 pcs/carton |
| 63mm Duct seal HDPE 9x12mm | 9x12mm | 10 pcs/carton | |
| 63mm Duct seal 12x12mm thin wall | 12x12mm | 10 pcs/carton | |
| 50204855 | 63mm Duct seal HDPE 7x14mm | 7x14mm | 10 pcs/carton |
| 63mm Duct seal HDPE 6x16mm | 6x16mm | 10 pcs/carton | |
| 63mm Duct seal HDPE 7×16 mm | 7×16 mm | 10 pcs/carton | |
| 50204892 | 63mm Duct seal HDPE 4x20mm | 4x20mm | 10 pcs/carton |
- Gas and watertight ≥ 0.25 bar.
- Suitable for retrofitting.
- Easy installation.
- Slim design.
- Includes cores of the recesses.
- Other versions available upon request.
| Plastic shells | Glassfibre reinforced |
| Closing key | Glassfibre reinforced |
| Sealing plug | EPDM |
| Sealing | up to 0.25 bar (0.50 bar can be achieved, please contact our technical department) |
| Pull-out force duct seal vs duct | ≥ 1200N |
Contents
- Plastic shells (2 items)
- Closing keys (2 items)
- Synthetic rubber plug for cavity shapes (1 item)

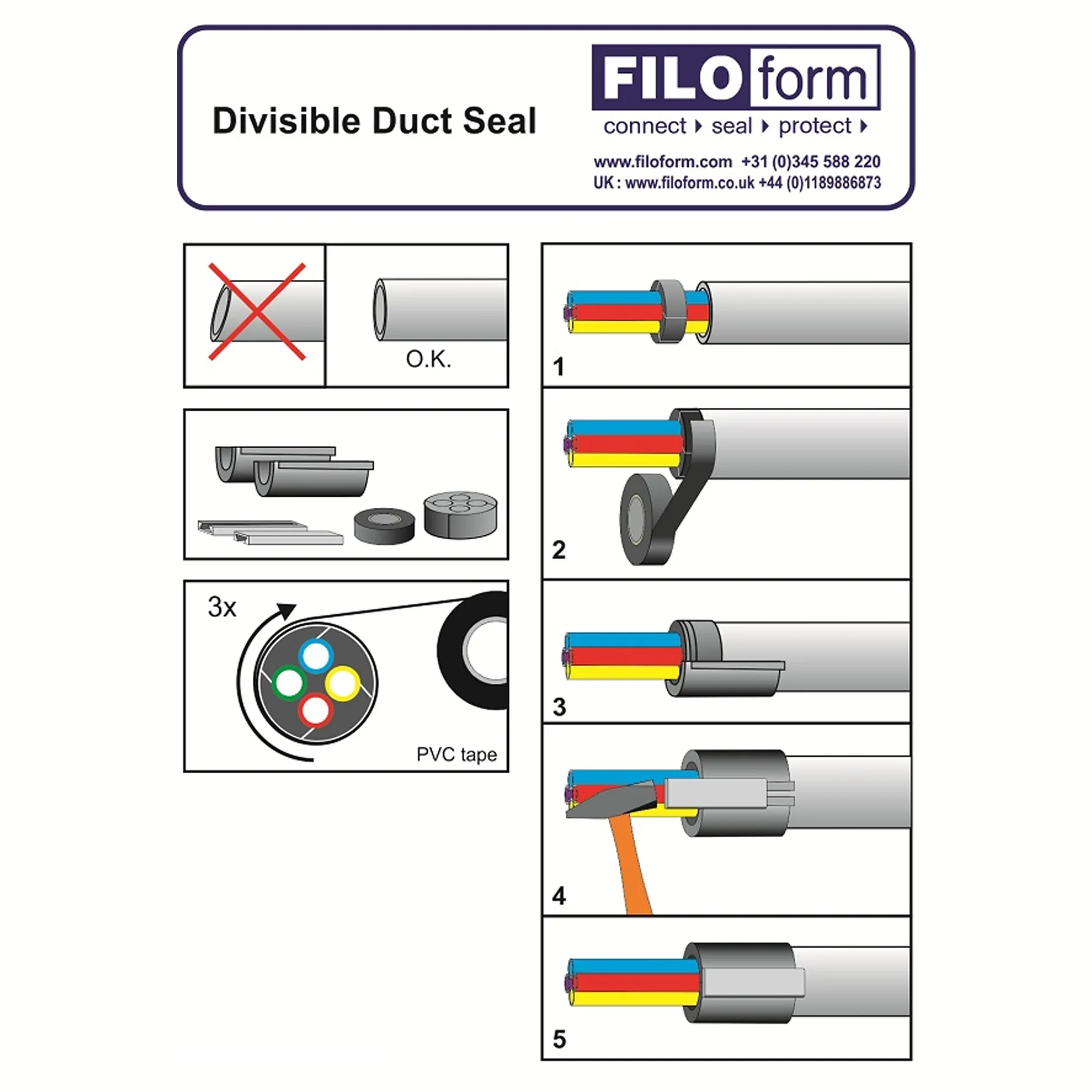

- Illustrated installation instructions
