Filobox + PU resin

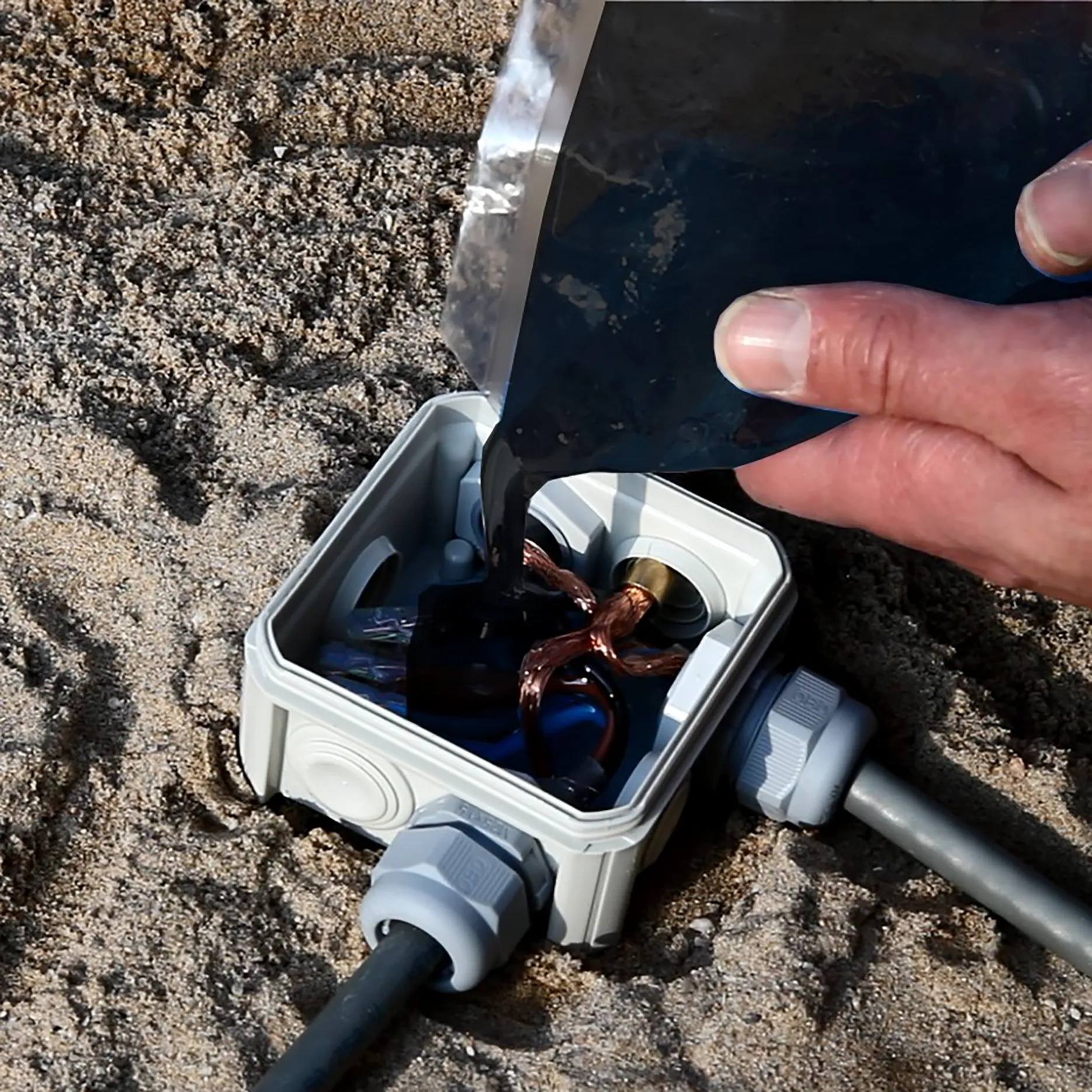

The Filobox casting mozzle package has been developed for connecting, waterproofing insulating and protecting underground and above-ground cable connections. The Filobox cable slee + PU resin contains a 2K polyurethane resin. After mixing, the PU resin turns into a hard solid end product with particularly good sealing properties.
- Suitable for connecting, insulating and protecting electricity cables, telecom cables and more.
- The Filobox cable mozzle is ideally suited for outdoor, underground, or in damp rooms where an IP 68 seal is required.
- PU resin tested in accordance with IEC 60455-3-8:2013
| SKU | Product Name | Order unit |
|---|---|---|
| 801604E | Filobox + PU | 50 pieces+ |
- Cable box including 3 swivels M25
- Suitable for cables with a diameter of 9-17mm
- The PU resin has excellent adhesion to metal and plastics
- Fully waterproof (IP68)
- Extremely simple and fast assembly
- Horizontally and vertically applicable
- Optimal moisture-resistant and electrical protection
- The PU resin is black in colour
| Material | Polyurethane resin (Filofill P2654) |
| Temperature range | -25°C to +120°C |
| Outer diameter of junction box | 90mm x 90mm x 52mm |
| Inner diameter of junction box | 77mm x 77mm x 46mm |
| Glands | M25 |
| Cable diameter | Ø 9 – 17mm |
| IP value | IP 68 according to EN 60529: 1989+A1: 1999 |
| GQ gel properties | Unit | Value | Standard |
|---|---|---|---|
| Age time at 23°C | minutes | 120 | |
| Visosity 23°C | mPa s | 1000 | ISO 3219 |
| Specific mass | g/cm³ | 0,97 | ISO 1183 |
| Mixing ratio | A:B | 1 : 1 | |
| Elasticity module | mPa | 0,005 | |
| Penetration, cone 150gr. | mm/10 | 300 | ISO 2137 |
| Temperature resistance | °C | -40°C to 140°C | |
| Dielectric constant (50 Hz) | ɛr | 2.5 | IEC 60250 |
| Insulation resistance | Ω | 10¹4 | IEC 60093 |
| Loss factor at 50 Hz | tan δ | 2 x 10−4 | IEC 60250 |
| Through-roding voltage | kV/mm | 23 | IEC 60243 |
| Colour | Transparent blue | ||
| Shelf life | Unlimited |
Instructions
You can download our mixing instructions here.
