Kabeline 1611 epoxy resin

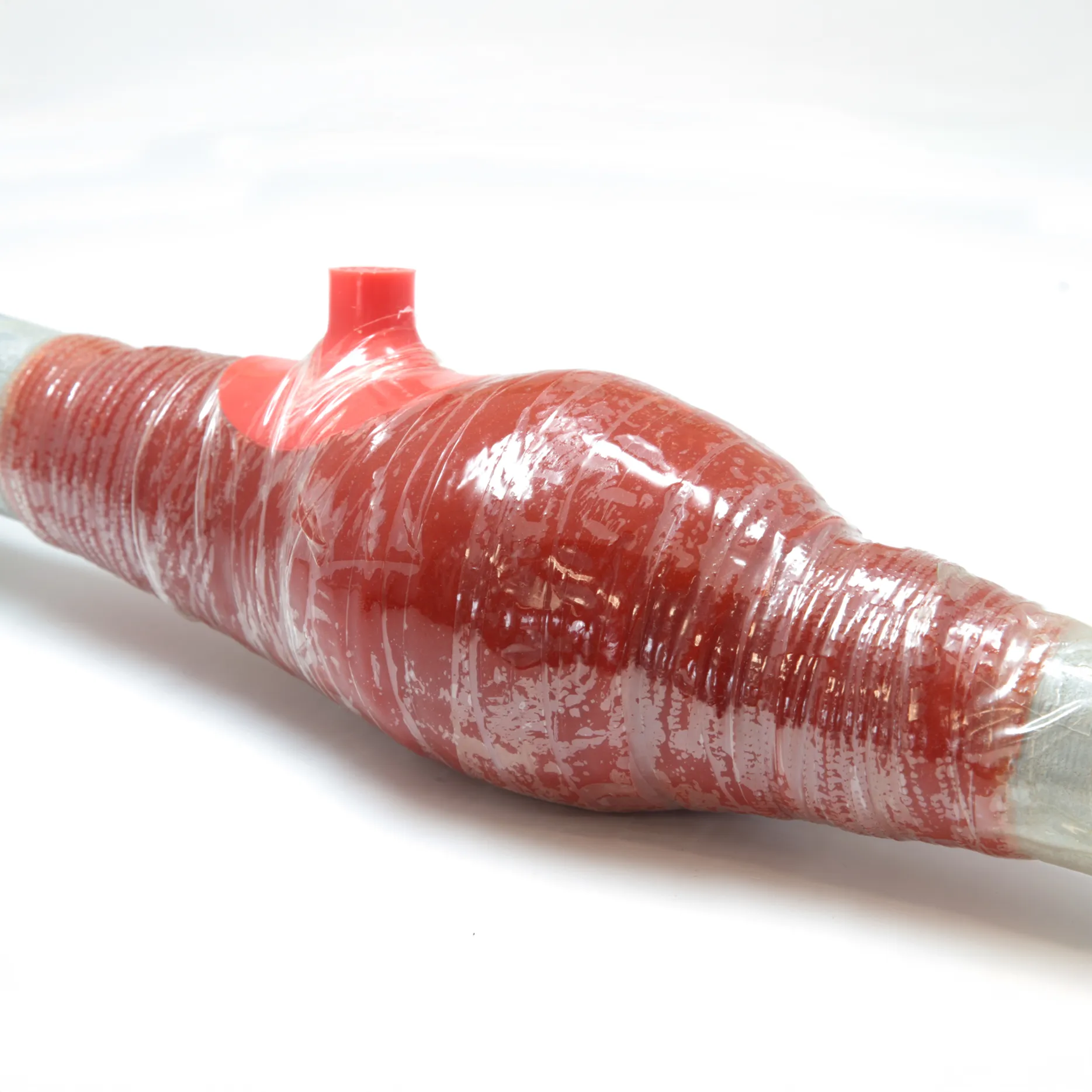

Kabeline 1611 is a unfilled 2-component epoxy resin used in low voltage injection joints up to 4 kV.
| SKU | Product Name | Colour | Content | Order Unit |
|---|---|---|---|---|
| 80136UK | Kabeline 1611 B-pack | Red | 197 gram | 10 pcs/carton |
| 80137UK | Kabeline 1611 C-pack | Red | 380 gram | 10 pcs/carton |
- Excellent electrical and mechanical features
- Suitable for all cable types, such as PVC, (XL) PE, PP and GPLK
- Totally resistant against water, applicable under all circumstances (even on wet cables)
- Optimal processability due to constant viscosity during mixing and injection
- Approved in accordance with CDE 0291 and NEN 3602
- Transparent bag allows visibility during mixing process
- Resin and hardener always supplied in the right volumes
- Resin which remains in the bag after mixing can be disposed of as normal waste
| Properties | Unit | Value | Standard (DIN VDE 0291, part 2 / NEN 3602) |
|---|---|---|---|
| Potlife (process time) 5°C | minutes | 60 | As specified by manufacturer (+30%) |
| Potlife (process time) 23°C | minutes | 19 | As specified by manufacturer (+30%) |
| Potlife (process time) 23°C | minutes | 10 | As specified by manufacturer (+30%) |
| Gel-time | minutes | 32 | NEN 3602 / Annex A |
| Density | g/cm³ | 1,107 | DIN 53479 / ISO 1675 |
| Compression strength | N/mm² | 12 | > 8 N/mm² (DIN EN 20604) |
| Hardness | Shore D | 83 | > 70 (DIN 53505 / ISO 868) |
| Tensile strength | N/mm² | 55 | DIN EN ISO 527 |
| Water absorption (24h/23°C) | % | 0,12 | DIN 53495 |
| Weight loss after thermal ageing (7d/120°C) | % | 0,48 | NEN EN ISO 179 / NEN 3602 / Annex C |
| Electrical resistance (24h 50% RH 23°C) | Ohm | 3,2 E + 13 | DIN 53482 |
| Electrical resistance (24h in H2O 23°C) | Ohm | 2,6 E + 13 | DIN 53482 |
| Specific resistance (24h 50% RH 23°C) | Ohm x cm | 1,4 E + 15 | DIN 53482 |
| Tracking resistance | KA 3c | DIN 53480 | |
| Dielectric strength | kV/mm | > 20 | DIN 53481 |
| Flame point in open cup resin | °C | > 175 | > 55 |
| Flame point in open cup hardener | °C | > 175 | > 55 |
| Shrink during hardening | % | 2,6 | < 6,5 (DIN 16945) |
| Impact resistance | kJ/m² | 12,5 | > 6 (DIN 53454) |
| Shelf life | months | 18 | |
| Hardening under water | ml/gas | 3 | < 10 (point 13 VDE 0291-2) |
| Colour | orange/red | ||
| Mixing time | minutes | 2 | |
| Raw materials | unfilled epoxy resin |
Instructions
You can download our mixing instructions here.
