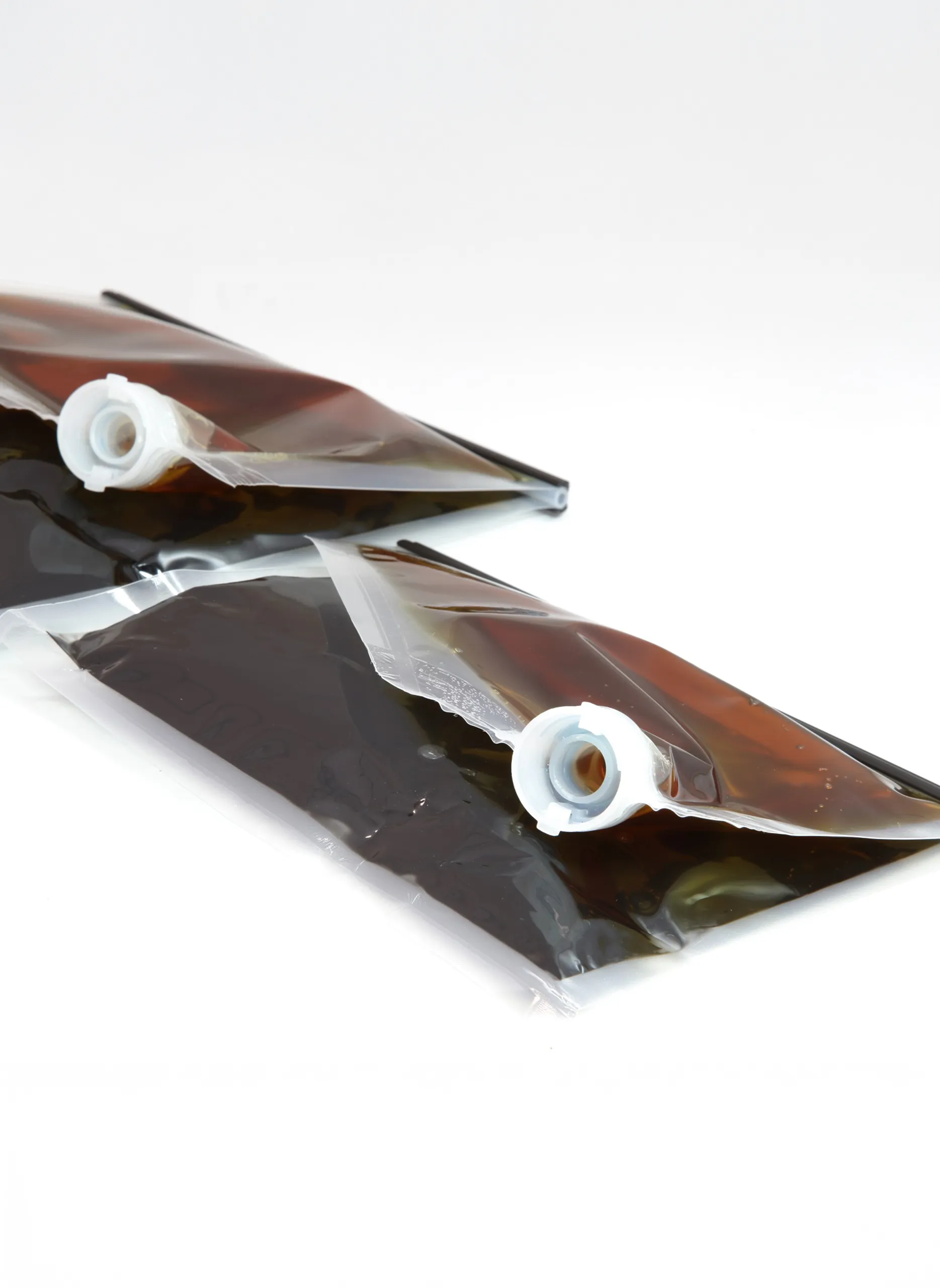

P2662 polyurethane casting resin 700ml
Specially designed for taped resin injection cable joints up to 10kV, however can also be used in cast resin joints. The resin contains polyether polyols, estherpolyols, and fire retardant additives. The hardner is a high quality MDI type. Filofill P2600 does not contain halogens or plasticizers. Filofill P2600 has good anti corrosion properties and provides good adhesion to metals, ceramics, many different plastics and can be used on all plastic and paper isolated cable types.
| SKU | Product Name | Colour | Content | Order Unit |
|---|---|---|---|---|
| 204715 | Filofill P2600 700ml | Black | 710ml | 6 pcs/carton |
- Very high resistance against UV, chemicals and earth alkalines & sea water
- Very high hydrolysis resistance
- No halogens and plasticizers

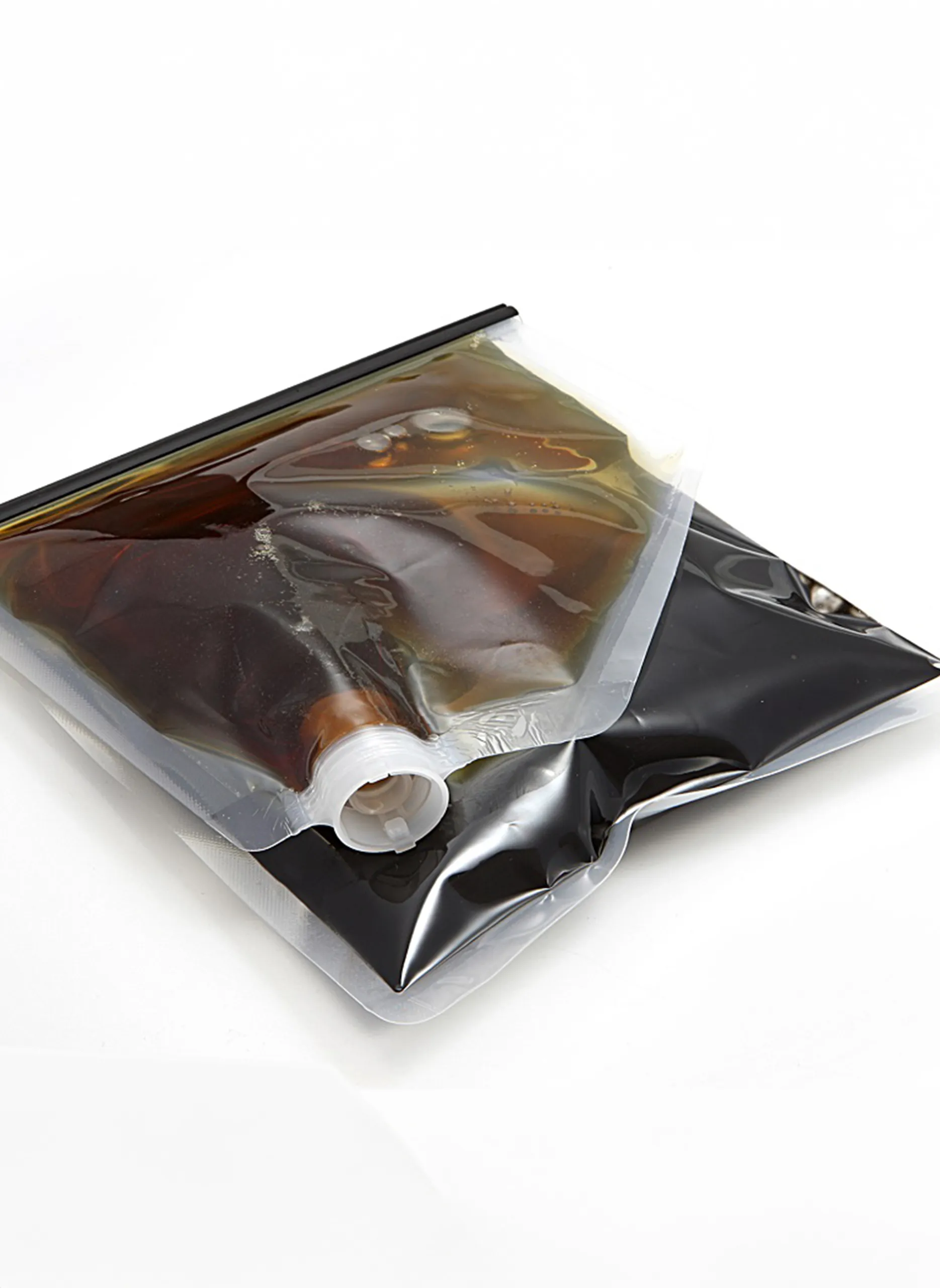

- Good visibility of the mixing process through the transparent packaging
- High impact resistance
- Low curing temperature
- No toxic emissions
- Good adhesion to all cable materials (PVC, PE, PP and XLPE)
- In accordance with IEC 60455-3-8:2018-02
- Recommended temperature during application 0°C and +35°C
- Storage temperature between +10°C and +35°C, short term between -10°C and +50°C
- Excellent curing characteristics
| Properties | Unit | Value | Test Method |
|---|---|---|---|
| Potlife (process time) 0.3L at 5°C | minutes | 37 | IEC 60455-2 |
| Potlife (process time) 0.3L at 23°C | minutes | 17 | IEC 60455-2 |
| Potlife (process time) 0.3L at 40°C | minutes | 9 | IEC 60455-2 |
| Gel-time 0.1L at 30°C | minutes | 20 | |
| Exothermic peak 0.1L at 30°C | °C | 45 | |
| Density | g/cm³ | 1.33 | EN ISO 1183-1 |
| Viscosity at 23°C | mPas | 1900 | EN ISO 2555 |
| Curing under water – Gas volume | ml | <5 | IEC 60455-2 |
| Hardness | Shore D | 50 | EN ISO 868 |
| Tensile strength | MPa | 11 | EN ISO 527 |
| Elongation at break | % | 61 | EN ISO 527 |
| Impact resistance | kJ/m² | >20 / no break | EN ISO 179 |
| Volume resistivity at 23°C | Ohm | 9,5×10¹⁴ | IEC 60093 |
| Dielectric strength at 23°C | kV/mm | 20 | EN 60243-1 |
| Temperature resistance | °C | -25 tot + 120 |
| Dry heat resistance: 28 days at 120°C | IEC 60455-2 | ||
|---|---|---|---|
| Mass loss | % | 0,4 | IEC 60455-2 |
| Impact resistance | kJ/m² | > 20 / no break | EN ISO 179 |
| Wet heat resistance: 28 days at 90°C | IEC 60455-2 | ||
|---|---|---|---|
| Hardness | Shore D | 45 | EN ISO 868 |
| Tensile strength | MPa | 8 | EN ISO 527 |
| Elongation at break | % | 40 | EN ISO 527 |
| Dielectric strength at 23°C | kV/mm | 20 | EN 60243-1 |
| General information | |||
|---|---|---|---|
| Store temperature | ºC | +10 tot +35 | |
| Shelf life | months | 24 | |
| Mixing time | minutes | 2 |
Material Safety Data Sheet (MSDS)
FILOform’s safety data sheets are currently not available online. Via our contact page you can request the required safety data sheet from our sales department.
Instructions
You can download our mixing instructions here.
