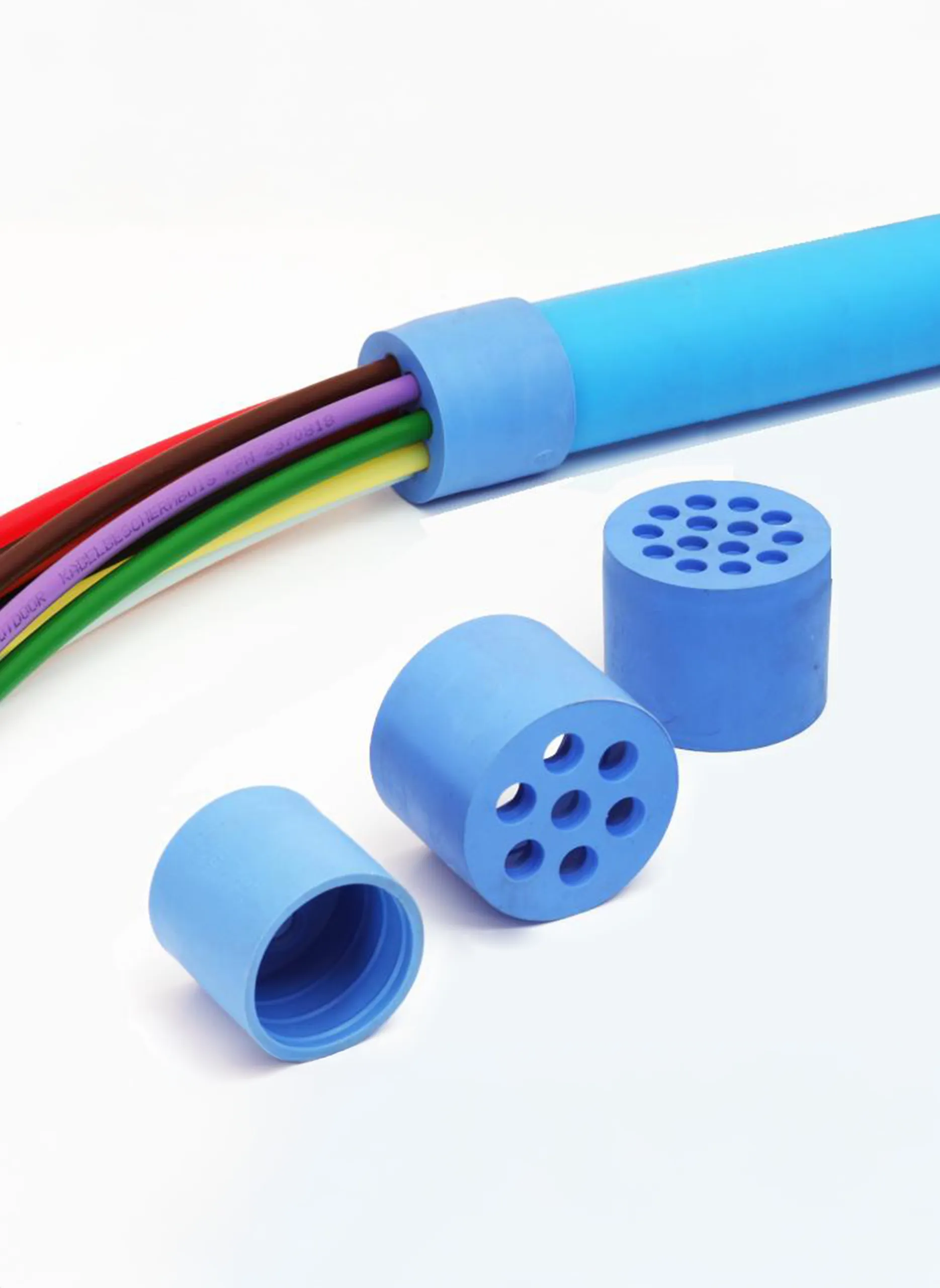

Sealing caps
FILOform sealing caps have been developed to provide an effective and simple solution to all splash water and dirttight sealing requirements in HDPE ducts and protective sleeves.
The sealing caps are standard dirt and splash watertight. After mounting with sealing compound FILOform Fill & Seal (art.nr. 80840) the FILOform sealing plugs easily exceed the specifications of NEN 2768.
The FILOform sealing caps are made from a high quality TPE, this material has a hardness of 40 Shore A.
| SKU | Product name | Diameter pipe | Cable diameter | Outside diameter HDPE duct (mm) | Recesses | Order unit |
|---|---|---|---|---|---|---|
| 822617 | Sealing cap 16/2x4mm (type16) | 16mm | 2x4mm | 16 | 2x4mm | 10 pcs/carton |
| 822613 | Sealing cap 40/5x10mm (type13) | 40mm | 5x10mm | 40 | 5x10mm | On request |
| 822615 | Sealing cap 40/4×10-12mm (type14) | 40mm | 4×10-12mm | 40 | 4×10-12mm | On request |
| 822616 | Sealing cap 40mm closed (4x10mm) (type15) | 40mm | Closed end cap (4x10mm) | 40 | 4x10mm | On request |
| 822510 | Sealing cap 50/5x12mm + (2x12mm) | 50mm | 5x12mm + 2x12mm | 50 | 25 pcs/carton |
- Splash water and dirttight sealing
- Formed from one part
- Easy to install
- Durable sealing
- made from high quality TPE
Material:
TPE
Hardness:
40 Shore A
