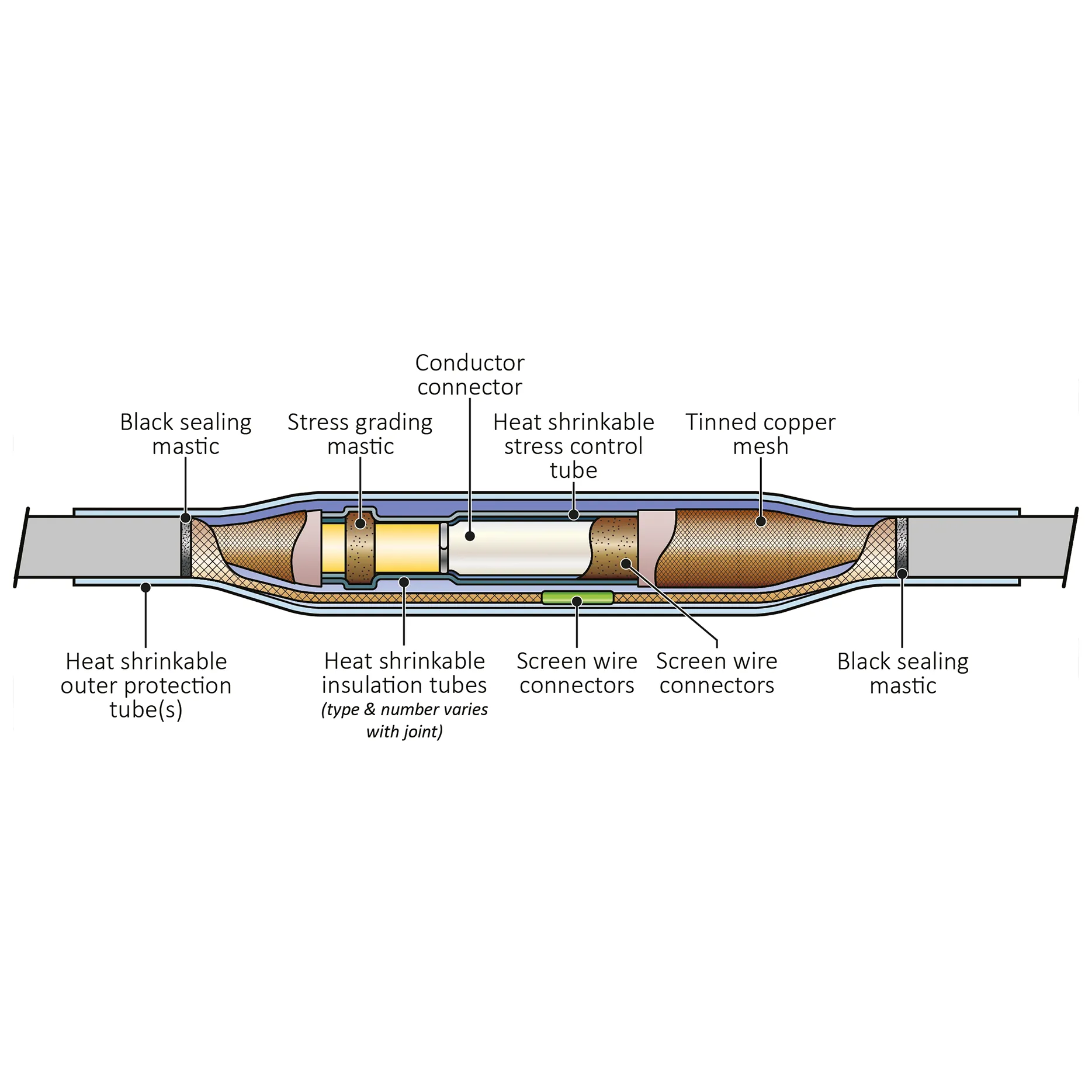

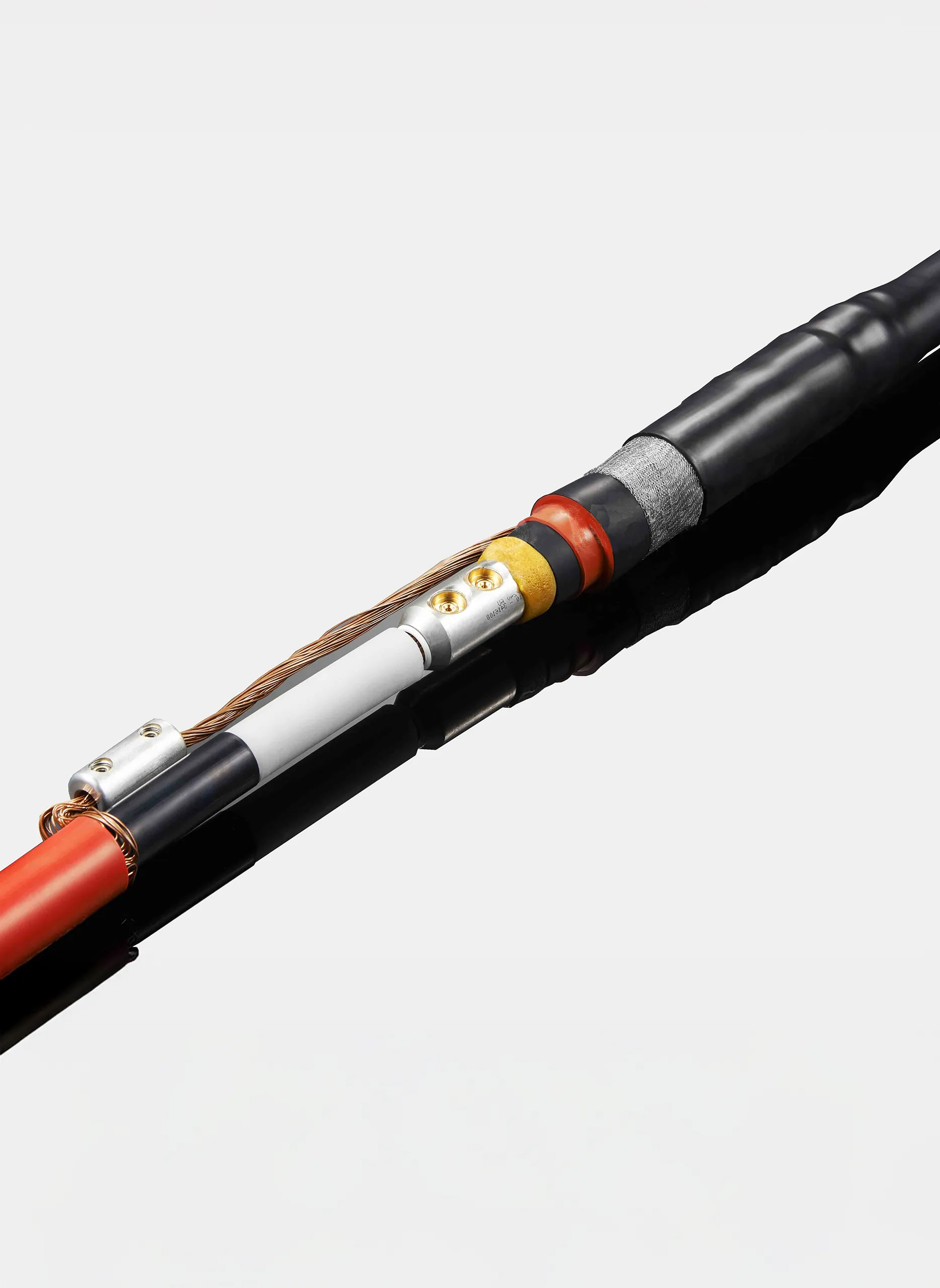

Single core MV joints 24kV / 185-300mm²
12/20(24)kV – Single Core – FILOform Medium Voltage Heatshrink Straight Cable Joints, are manufactured and tested in accordance with CENELEC 629.1.S2 & IEC 60502-4, and suitable for Indoor and Outdoor applications for 12/20(24)kV.
The FILOform range enables the installer to offer a complete solution, utilising compression or mechanical connectors; and XLPE and EPR cable sheaths. Straight Cable Joints for Transition to PILC/PICAS are available on request.
The FILOform range of Straight Cable Joints is fully RoHS compliant.
| SKU | Product Name | Cable Diameter (mm) | Core min. (mm) | Core max. (mm²) | Order Unit |
|---|---|---|---|---|---|
| HKSJ-24/1×185-300mm | Single core 24kV / 185-300mm² | Ø 27.5 – 33.0 | 185 | 300 | per piece |
- Complete with CTS/AWA armour kit as standard
- Suitable for Compression and Mechanical Connectors
- Suitable for EPR/XLPE and PVC cables
- Range taking
- Other voltages up to 36kV available on request
- Suitable for TRIPLEX cable
- 3 Core, Transition and Trifurcating kits available on request
