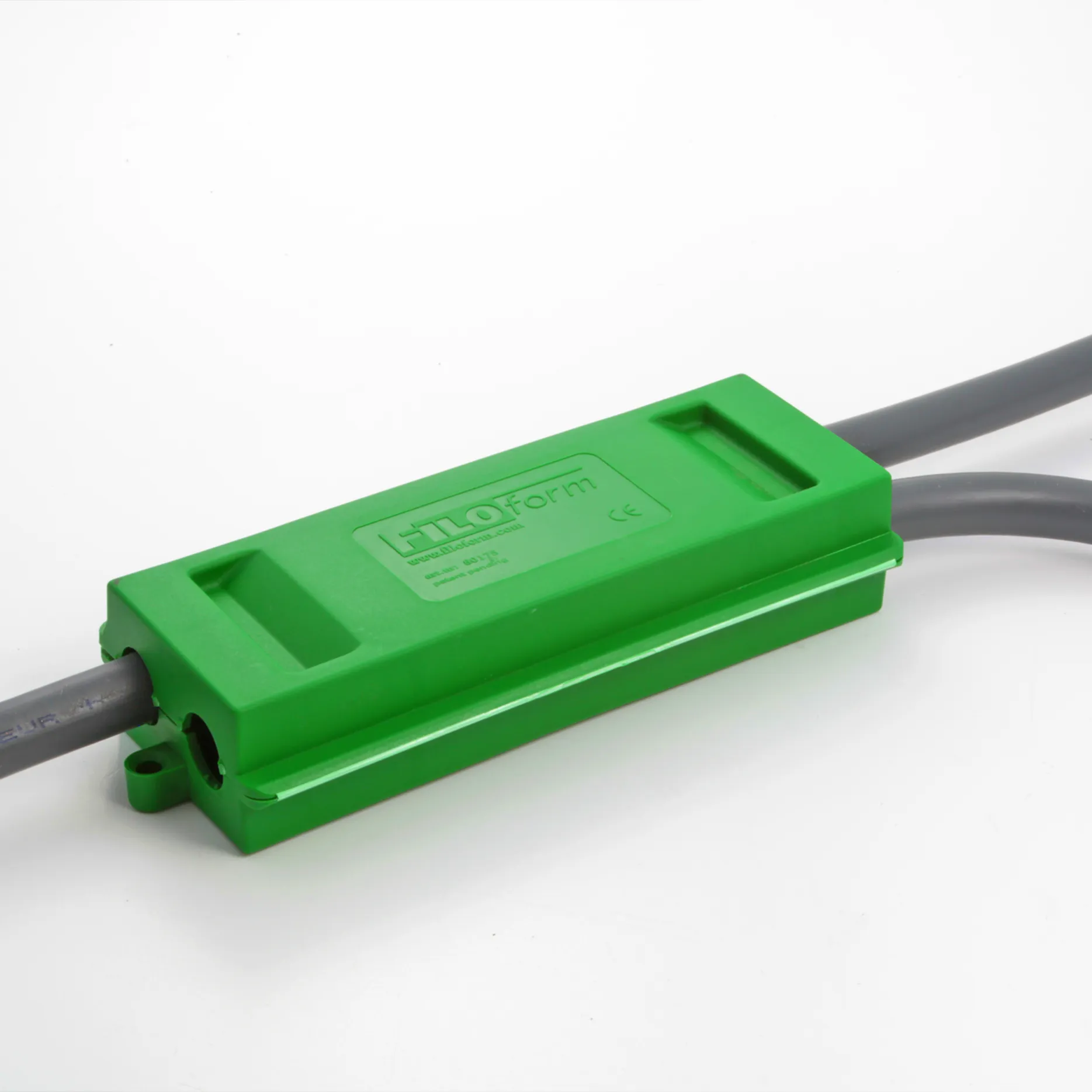

Smart gel joint branch
The smart Joint is a cable joint which is pre-filled with an insulating and waterproof filling mass, and is suitable for cable diameters up to 15.7mm (0.62 inch); 2 x 2.5mm². The Smart Joint can be used inside and outside as well as underground.
| SKU | Product Name | Cable Diameter (mm) | Dimensions (mm) | Order Unit |
|---|---|---|---|---|
| 290100 | Smart-Joint (double) branch-off joint | Ø 05 – 15,7 | 170x73x37 | per piece |
- Type tested according to: EN 50393:2006-11
- Quick and easy installation

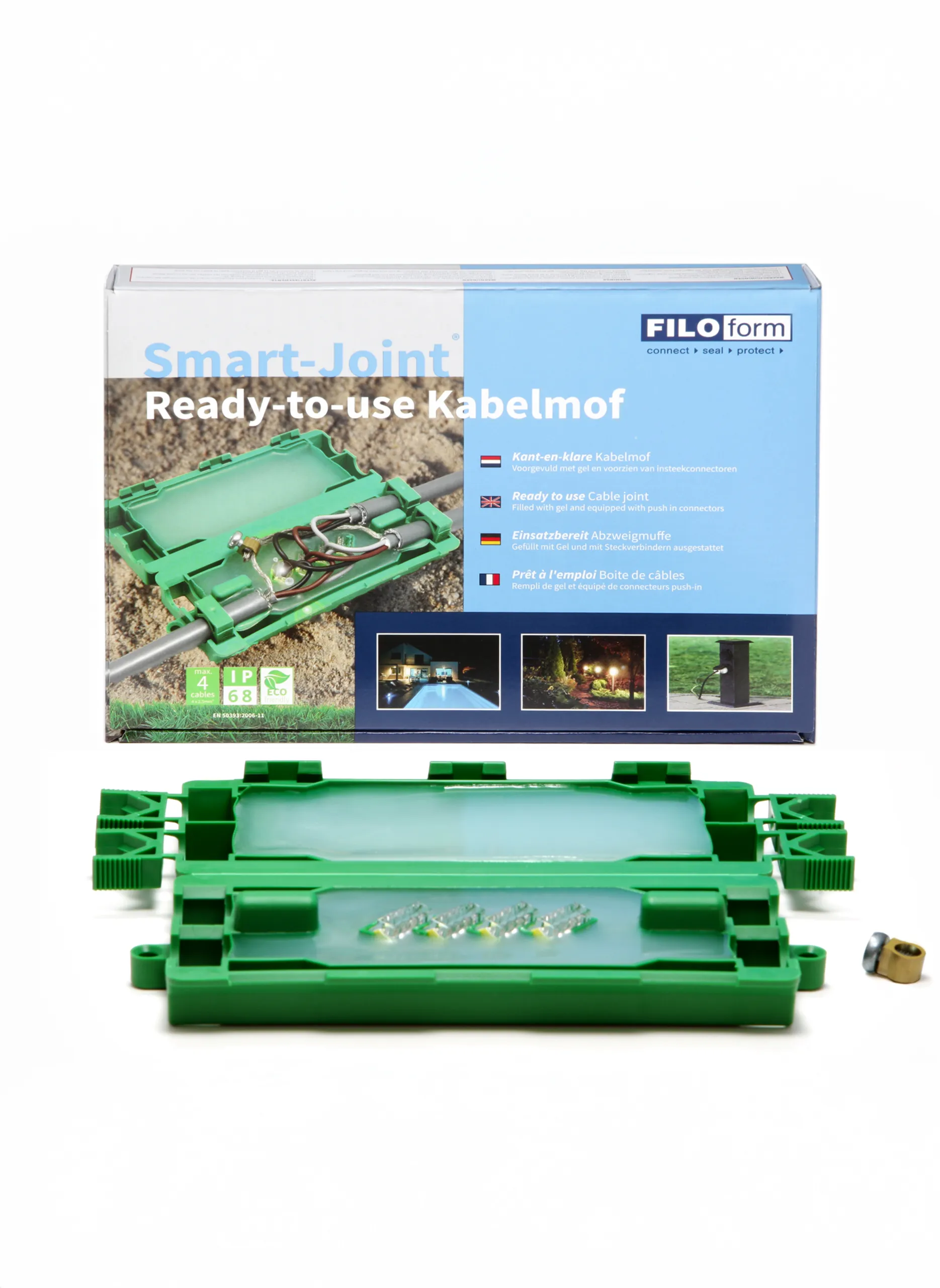

- Ready to use; the Smart Joint is being supplied “pre-filled” with the insulating filling mass
- (double) branch off joint provided with 4 pre-installed connectors and one earth connector
- Fully sealed for water penetration
- Environmental friendly
- No shelf life
- Provided with cable clamps
- Provided with 2 holes for easy installation
- CE-approval
| Cable diameter | 5mm – 15,7mm |
| Cable capacity | max. 4 x 2,5mm² |
| Cable types | XLPE, PVC, HO7, Any Un-armoured cable |
| Temperature resistance | -25°C till +70°C |
| Dimensions | 170mm x 73mm x 37mm |
| Connectors | for solid copper cores, not stranded |
| (branch-off joint only) | 4 x 0,75mm² till 4 x 2,5mm² |
| (branch-off joint only) | 400 V – 24 A / 2,5mm² |
| IP-value | IP 68 (EN 60529: 1989 + A1: 1999) |
| Approval | CE-approval |
| Tested according to | EN 50393 : 2006-11 |
