WallMax® modular frame (WMF)
WallMax® Modular Frames are rectangular structures made of different angular and flat parts, which can be assembled together through bolts and nuts to create either single or multiple openings for modules.
WMF frames are modular solutions where the separate parts can be combined and assembled around existing installations, thus allowing special ease of mounting.
WMF are solutions designed for installation through bolting or casting in the wall.
Modular Frames are used in combination with WMR series modules and accessories, including expanders and retainer plates.
While the pieces are bolted together, the complete frame is designed for bolting and casting in the wall.
| SKU | Product name | Packing space (mm) | External nominal dimensions (HxW D=60mm) | Weight (kg) | Weight (lb) |
|---|---|---|---|---|---|
| 71 1033 0512 | WMF ANG SS 120 Galv | width = 120mm | 120×40 | 0.53 | 1.168 |
| 71 1033 0518 | WMF ANG LS 60 Galv | 60×120 | 181×40 | 0.94 | 2.077 |
| 71 1033 0524 | WMF ANG LS 120 Galv | 120×120 | 240×40 | 1.26 | 2.784 |
| 71 1033 0529 | WMF ANG LS 180 Galv | 180×120 | 290×40 | 1.57 | 3.466 |
| 71 1033 0535 | WMF ANG LS 240 Galv | 240×120 | 358×40 | 1.94 | 4.279 |
| 71 1033 0818 | WMF PLATE 60 Galv | 60×120 | 181×8 | 0.65 | 1.435 |
| 71 1033 0824 | WMF PLATE 120 Galv | 120×120 | 240×8 | 0.88 | 1.929 |
| 71 1033 0829 | WMF PLATE 180 Galv | 180×120 | 298×8 | 1.10 | 2.425 |
| 71 1033 0835 | WMF PLATE 240 Galv | 240×120 | 358×8 | 1.32 | 2.919 |
| Picture | SKU | Product name | Openings | Packing space (mm) | External nominal dimensions (HxW D=60mm) |
|---|---|---|---|---|---|
 |
71 1033 0611 | WMF 60 1×1 Galv | 1×1 | 60×120 | 178×240 |
 |
71 1033 0612 | WMF 60 1×2 Galv | 1×2 | 60×120 | 178×368 |
 |
71 1033 0613 | WMF 60 1×3 Galv | 1×3 | 60×120 | 178×496 |
 |

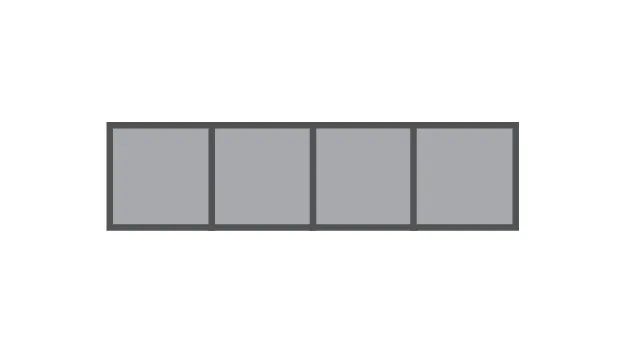

71 1033 0614 | WMF 60 1×4 Galv | 1×4 | 60×120 | 178×624 |
 |

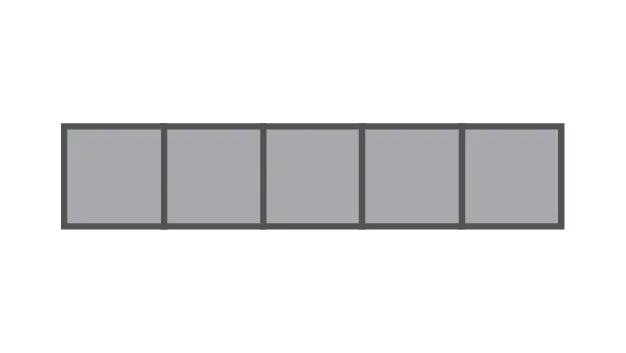

71 1033 0615 | WMF 60 1×5 Galv | 1×5 | 60×120 | 178×752 |
 |

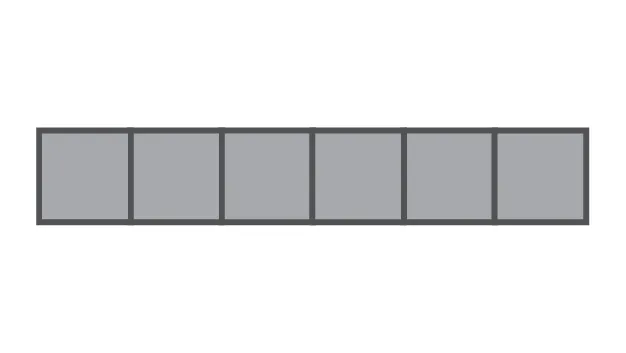

71 1033 0616 | WMF 60 1×6 Galv | 1×6 | 60×120 | 178×880 |
|
|
71 1033 0211 | WMF 120 1×1 Galv | 1×1 | 120×120 | 238×240 |
|
|
71 1033 0212 | WMF 120 1×2 Galv | 1×2 | 120×120 | 238×368 |
|
|
71 1033 0213 | WMF 120 1×3 Galv | 1×3 | 120×120 | 238×496 |
|
|
71 1033 0214 | WMF 120 1×4 Galv | 1×4 | 120×120 | 238×624 |
|
|
71 1033 0215 | WMF 120 1×5 Galv | 1×5 | 120×120 | 238×752 |
|
|
71 1033 0216 | WMF 120 1×6 Galv | 1×6 | 120×120 | 238×880 |
|
|
71 1033 1811 | WMF 180 1×1 Galv | 1×1 | 180×120 | 298×240 |
|
|
71 1033 1812 | WMF 180 1×2 Galv | 1×2 | 180×120 | 298×368 |
|
|
71 1033 1813 | WMF 180 1×3 Galv | 1×3 | 180×120 | 298×496 |
|
|
71 1033 1814 | WMF 180 1×4 Galv | 1×4 | 180×120 | 298×624 |
|
|
71 1033 1815 | WMF 180 1×5 Galv | 1×5 | 180×120 | 298×752 |
|
|
71 1033 1816 | WMF 180 1×6 Galv | 1×6 | 180×120 | 298×880 |
|
|
71 1033 2411 | WMF 240 1×1 Galv | 1×1 | 240×120 | 358×240 |
|
|
71 1033 2412 | WMF 240 1×2 Galv | 1×2 | 240×120 | 358×368 |
|
|
71 1033 2413 | WMF 240 1×3 Galv | 1×3 | 240×120 | 358×496 |
|
|
71 1033 2414 | WMF 240 1×4 Galv | 1×4 | 240×120 | 358×624 |
|
|
71 1033 2415 | WMF 240 1×5 Galv | 1×5 | 240×120 | 358×752 |
|
|
71 1033 2416 | WMF 240 1×6 Galv | 1×6 | 240×120 | 358×880 |
Note: weights are approx.
Key benefits:
- Modular rectangular frames comprised of flat and angular parts
- Can be assembled together to create either single or multiple openings for modules
- Easily mounted around existing installations
- Designed for bolted or wall casting installation
Materials
- Primed Steel
- SS AISI 316 L
- Galvanised Steel
Other materials available upon request.
