WallMax® module compact (WMC)
WallMax® Modules Compact offer the same technology and adaptability of WallMax® Modules Regular but are designed for use where need calls for thinner frames. Cut at half the length of WallMax® Regular Modules, at 30mm instead of 60mm, they are significantly lighter, while retaining the same ease of use of the WMR series.
WMC modules are available with single and multiple openings, to offer maximum efficiency of packing space.
Compact modules are used in combination with WallMax® mini R series, and with WCC PA, WX 200 PA and WMFC PA frames.
Standard depth of each Compact Module is 30mm.
WMC Modules come in a various numbers of sizes and diameter openings, allowing clients to design the best possible sealing solution for every specific need.
| Picture | SKU | Product name | Accommodates cable/pipe diameter (mm / in) | External dimensions (mm) | Weight (g) | Weight (kg) |
|---|---|---|---|---|---|---|
 |

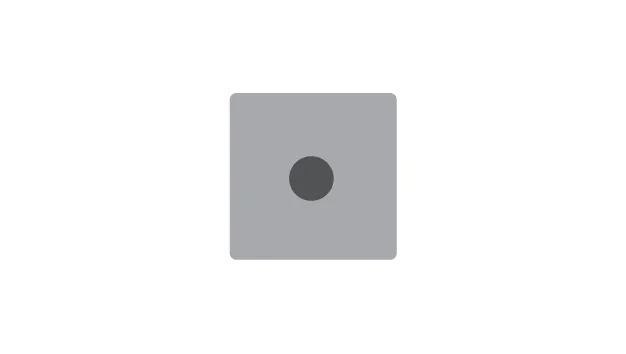

71 3000 0015 | WMC 15 | 0 + 2.5 – 11.6mm / 0 + 0.098 – 0.457 | 15×15 | 8 | 0.018 |
 |

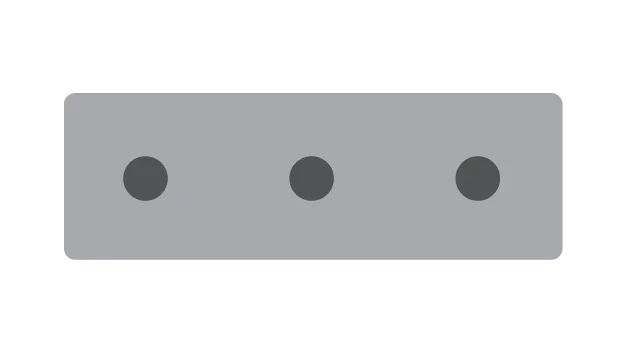

71 3000 4015 | WMC 15w40 | 0 + 2.5 – 11.6mm / 0 + 0.098 – 0.457 | 15×40 | 21 | 0.046 |
 |

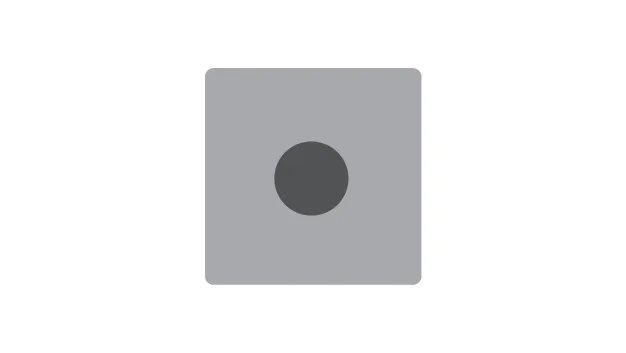

713000 0020 | WMC 20 | 0 + 4.0 – 16.5mm / 0 + 0.157 – 0.650 in | 20×20 | 14 | 0.031 |
 |

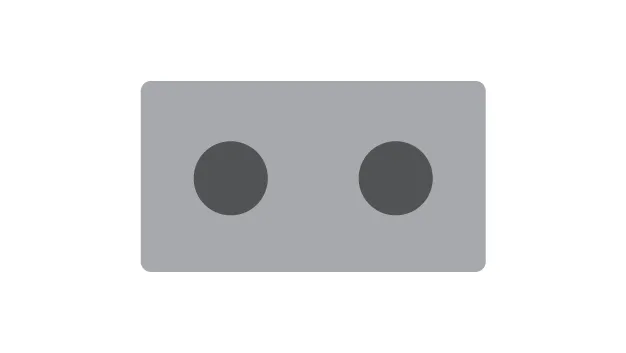

71 3000 4020 | WMC 20w40 | 0 + 4.0 – 16.5mm / 0 + 0.157 – 0.650 in | 20×40 | 26 | 0.057 |
 |

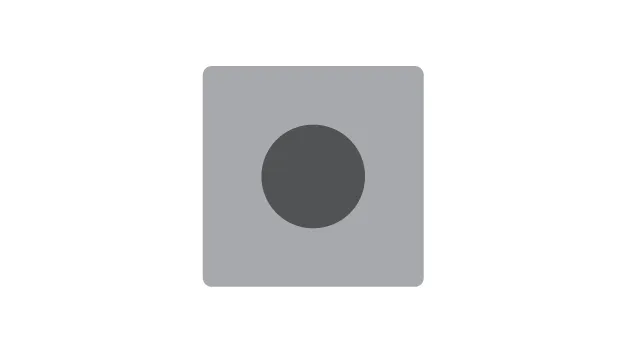

71 3000 0030 | WMC 30 | 0 + 10.0 – 25.0mm / 0 + 0.394 – 0.984 in | 30×30 | 32 | 0.071 |
 |

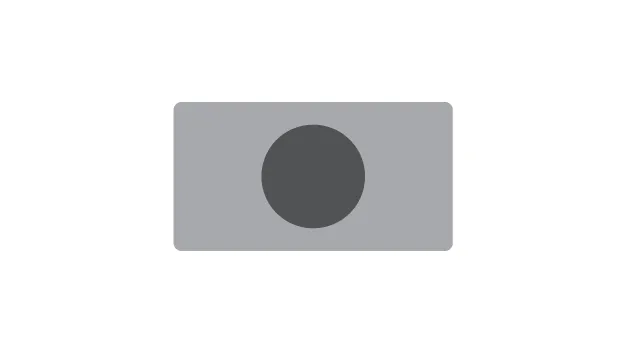

71 3000 4030 | WMC 30w40 | 0 + 10.0 – 25.0mm / 0 + 0.394 – 0.984 in | 30×40 | 42 | 0.093 |
 |

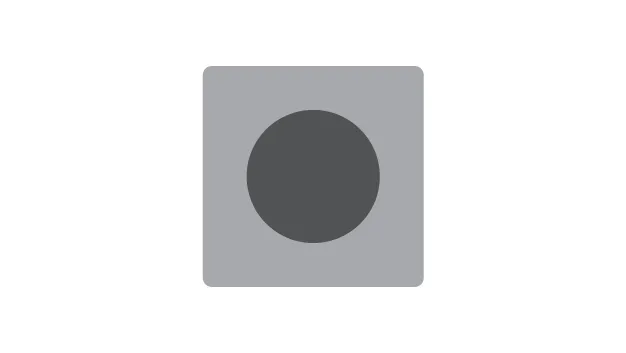

71 3000 0040 | WMC 40 | 0 + 21.5 – 34.5mm / 0 + 0.846 – 1.358 in | 40×40 | 57 | 0.126 |
 |

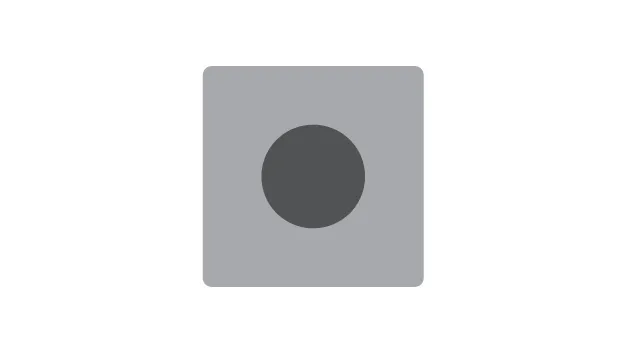

71 3000 1040 | WMC 40 10-34 | 0 + 10.0 – 34.5mm / 0 + 0.394 – 1.358 in | 40×40 | 55 | 0.121 |
 |

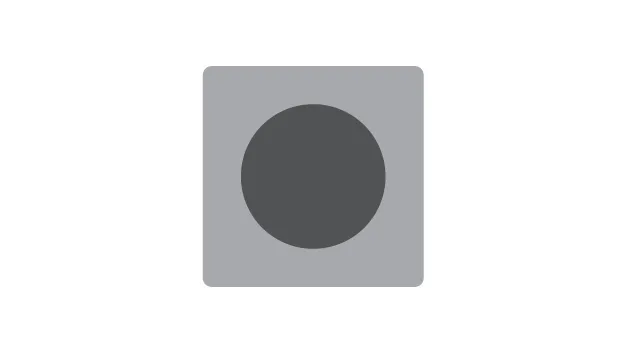

71 3000 0050 | WMC 50 | 0 + 28.0 – 44.0mm / 0 + 1.102 – 1.732 in | 50×50 | 88 | 0.194 |
 |

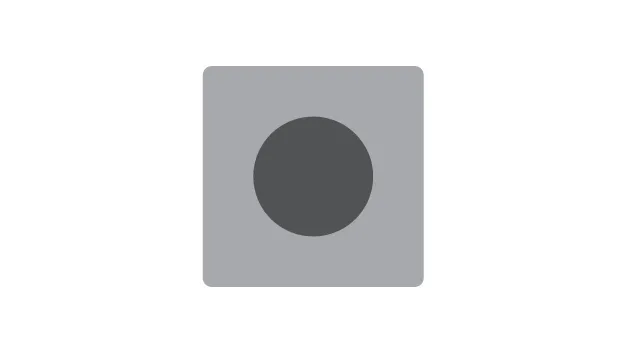

71 3000 1050 | WMC 50 10-44 | 0 + 10.0 – 44.0mm / 0 + 0.394 – 1.732 in | 50×50 | 88 | 0.194 |
 |

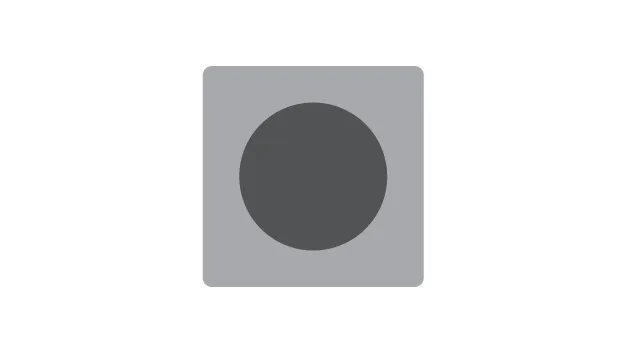

71 3000 0060 | WMC 60 | 0 + 24.0 – 54.0mm / 0 + 0.945 – 2.126 in | 60×60 | 127 | 0.280 |
Note: weights are approx.
Material:
EPDM Rubber
Key benefits:
- Lightweight, compact version of WallMax® Regular Module (30mm depth instead of 60mm)
- Ideal for thinner frames and space-constrained installations
- Available in single and multi-opening versions
- Compatible with Mini R series, WCC PA, WX 200 PA, WMFC PA frames
