WallMax® rectangular holed flanged frame light (WRHFFL)
WallMax® Rectangular Holed Flanged Frames Light are alternative solutions to WRFFL to be used where welding is not recommended.
WRHFFL has a 6mm thick flange.
WRHFFL frames can be assembled in a variety of combinations for what concerns both openings and construction materials.
Pre-defined solutions as well as customised options are offered to adjust to client’s needs.
WRHFFL are designed for installation through bolting or casting in the wall.
WRHFFL frames are used in combination with WMR series and accessories to create personalised sealing solutions. Standard packing space allows for multiple combinations of WMR modules and a perfect fit to any customer’s need.
| Picture | SKU | Product name | Openings | Packing space (mm) | External nominal dimensions (HxW D=60mm) | Weight (kg) | Weight (lb) |
|---|---|---|---|---|---|---|---|
 |
71 1230 0611 | WRHFFL 60 1×1 Primed | 1×1 | 60×120 | 230×252 | 3.30 | 7.277 |
 |

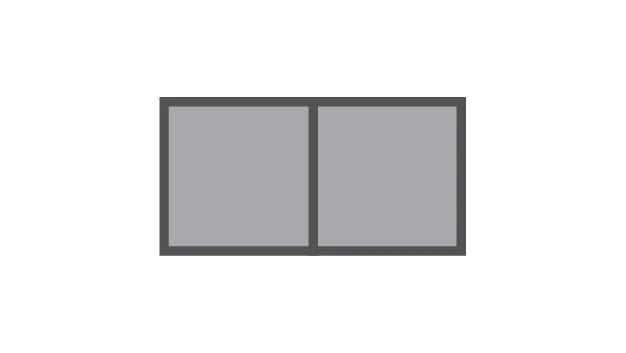

71 1230 0612 | WRHFFL 60 1×2 Primed | 1×2 | 60×120 | 230×382 | 5.24 | 11.543 |
 |

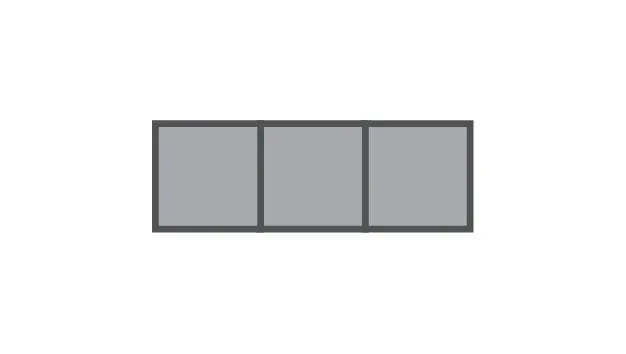

71 1230 0613 | WRHFFL 60 1×3 Primed | 1×3 | 60×120 | 230×512 | 7.17 | 15.809 |
|
|
71 1230 1211 | WRHFFL 120 1×1 Primed | 1×1 | 120×120 | 290×252 | 3.97 | 8.755 |
|
|
71 1230 1212 | WRHFFL 120 1×2 Primed | 1×2 | 120×120 | 290×382 | 6.19 | 13.638 |
|
|
71 1230 1213 | WRHFFL 120 1×3 Primed | 1×3 | 120×120 | 290×512 | 8.40 | 18.251 |
|
|
71 1230 1811 | WRHFFL 180 1×1 Primed | 1×1 | 180×120 | 350×252 | 4.64 | 10.232 |
|
|
71 1230 1812 | WRHFFL 180 1×2 Primed | 1×2 | 180×120 | 350×382 | 7.15 | 15.754 |
|
|
71 1230 1813 | WRHFFL 180 1×3 Primed | 1×3 | 180×120 | 350×512 | 9.64 | 21.255 |
|
|
71 1230 2411 | WRHFFL 240 1×1 Primed | 1×1 | 240×120 | 410×252 | 5.32 | 11.731 |
|
|
71 1231 0611 | WRHFFL 60 1×1 AISI 316 | 1×1 | 60×120 | 230×252 | 3.38 | 7.454 |
|
|
71 1231 0612 | WRHFFL 60 1×2 AISI 316 | 1×2 | 60×120 | 230×382 | 5.32 | 11.720 |
|
|
71 1231 0613 | WRHFFL 60 1×3 AISI 316 | 1×3 | 60×120 | 230×512 | 7.25 | 15.986 |
|
|
71 1231 1211 | WRHFFL 120 1×1 AISI 316 | 1×1 | 120×120 | 290×252 | 4.07 | 8.975 |
|
|
71 1231 1212 | WRHFFL 120 1×2 AISI 316 | 1×2 | 120×120 | 290×382 | 6.35 | 14.002 |
|
|
71 1231 1213 | WRHFFL 120 1×3 AISI 316 | 1×3 | 120×120 | 290×512 | 8.63 | 19.028 |
|
|
71 1231 1811 | WRHFFL 180 1×1 AISI 316 | 1×1 | 180×120 | 350×252 | 4.76 | 10.496 |
|
|
71 1231 1812 | WRHFFL 180 1×2 AISI 316 | 1×2 | 180×120 | 350×382 | 7.33 | 16.162 |
|
|
71 1231 1813 | WRHFFL 180 1×3 AISI 316 | 1×3 | 180×120 | 350×512 | 9.90 | 21.828 |
|
|
71 1231 2411 | WRHFFL 240 1×1 AISI 316 | 1×1 | 240×120 | 410×252 | 5.45 | 12.017 |
|
|
71 1233 0611 | WRHFFL 60 1×1 Galv | 1×1 | 60×120 | 230×252 | 3.30 | 7.277 |
|
|
71 1233 0612 | WRHFFL 60 1×2 Galv | 1×2 | 60×120 | 230×382 | 5.24 | 11.543 |
|
|
71 1233 0613 | WRHFFL 60 1×3 Galv | 1×3 | 60×120 | 230×512 | 7.17 | 15.809 |
|
|
71 1233 1211 | WRHFFL 120 1×1 Galv | 1×1 | 120×120 | 290×252 | 3.97 | 8.755 |
|
|
71 1233 1212 | WRHFFL 120 1×2 Galv | 1×2 | 120×120 | 290×382 | 6.19 | 13.638 |
|
|
71 1233 1213 | WRHFFL 120 1×3 Galv | 1×3 | 120×120 | 290×512 | 8.40 | 18.251 |
|
|
71 1233 1811 | WRHFFL 180 1×1 Galv | 1×1 | 180×120 | 350×252 | 4.64 | 10.232 |
|
|
71 1233 1812 | WRHFFL 180 1×2 Galv | 1×2 | 180×120 | 350×382 | 7.15 | 15.754 |
|
|
71 1233 1813 | WRHFFL 180 1×3 Galv | 1×3 | 180×120 | 350×512 | 9.64 | 21.255 |
|
|
71 1233 2411 | WRHFFL 240 1×1 Galv | 1×1 | 240×120 | 410×252 | 5.32 | 11.731 |
|
|
71 1233 1213 | WRHFFL 120 1×3 Galv | 1×3 | 120×120 | 290×512 | 8.40 | 18.251 |
|
|
71 1233 1811 | WRHFFL 180 1×1 Galv | 1×1 | 180×120 | 350×252 | 4.64 | 10.232 |
|
|
71 1233 1812 | WRHFFL 180 1×2 Galv | 1×2 | 180×120 | 350×382 | 7.15 | 15.754 |
|
|
71 1233 1813 | WRHFFL 180 1×3 Galv | 1×3 | 180×120 | 350×512 | 9.64 | 21.255 |
|
|
71 1233 2411 | WRHFFL 240 1×1 Galv | 1×1 | 240×120 | 410×252 | 5.32 | 11.731 |
Note: weights are approx.
Key benefits:
- Lightweight 6mm flange alternative to WRFFL where welding isn’t suitable
- Designed for bolted or wall casting installation
- Supports a wide range of module and material options
Materials
- Primed Steel
- SS AISI 316 L
- Aluminium
Other materials available upon request.
