WallMax® rectangular metal frame (WRF)

WallMax® Rectangular Frames are metal structures with single or multiple openings.

A large variety of combinations is available in terms of openings, sizes and materials, allowing to satisfy specific customer needs.

WRF solutions are designed for installation through welding.

WRF frames are used in combination with WMR series modules and accessories to achieve customised sealing solutions.

The numerous combinations of openings and packing space allow for development of cable transit solutions specific to customer needs.


Contact us to enquire

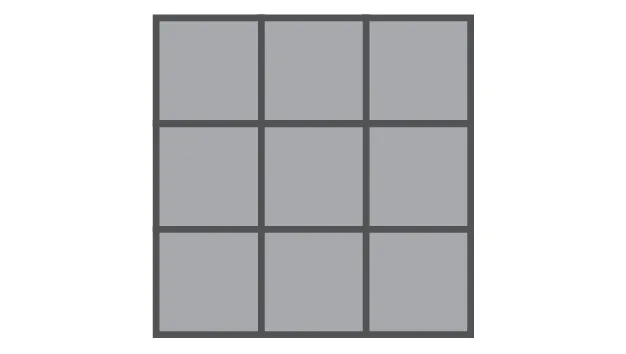

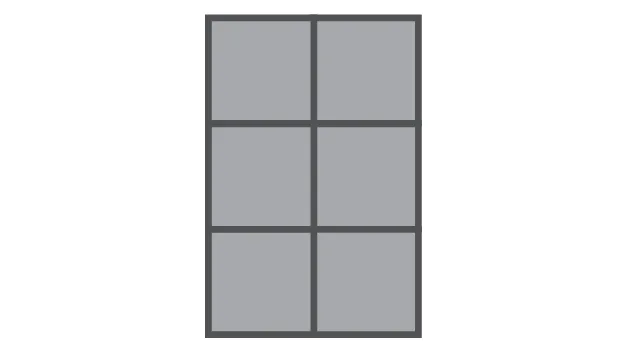

Picture SKU Product name Openings Packing space (mm) External nominal dimensions (HxW D=60mm) Weight (kg) Weight (lb)
71 1000 0611 WRF 60 1×1 Primed 1×1 60×120 118×140 2.19 4.828
71 1000 0612 WRF 60 1×2 Primed 1×2 60×120 118×270 3.96 8.730
71 1000 0613 WRF 60 1×3 Primed 1×3 60×120 118×400 5.73 12.624
71 1000 0614 WRF 60 1×4 Primed 1×4 60×120 118×530 7.49 16.521
71 1000 0615 WRF 60 1×5 Primed 1×5 60×120 118×660 9.26 20.419
71 1000 0616 WRF 60 1×6 Primed 1×6 60×120 118×790 11.03 24.317
71 1000 1211 WRF 120 1×1 Primed 1×1 120×120 178×140 2.75 6.061
71 1000 1212 WRF 120 1×2 Primed 1×2 120×120 178×270 4.80 10.580
71 1000 1213 WRF 120 1×3 Primed 1×3 120×120 178×400 6.85 15.099
71 1000 1214 WRF 120 1×4 Primed 1×4 120×120 178×530 8.90 19.621
71 1000 1215 WRF 120 1×5 Primed 1×5 120×120 178×660 10.95 24.141
71 1000 1216 WRF 120 1×6 Primed 1×6 120×120 178×790 13.00 28.660
71 1000 1217 WRF 120 1×7 Primed 1×7 120×120 178×920 15.05 33.180
71 1000 1218 WRF 120 1×8 Primed 1×8 120×120 178×1050 17.10 37.699
71 1000 1219 WRF 120 1×9 Primed 1×9 120×120 178×1180 19.15 42.219
71 1000 1221 WRF 120 2×1 Primed 2×1 120×120 346×140 4.88 10.765
71 1000 1222 WRF 120 2×2 Primed 2×2 120×120 356×270 9.6 21.248
71 1000 1223 WRF 120 2×3 Primed 2×3 120×120 356×400 13.74 30.287
71 1000 1224 WRF 120 2×4 Primed 2×4 120×120 356×530 18.17 40.047
71 1000 1225 WRF 120 2×5 Primed 2×5 120×120 356×660 22.59 49.809
71 1000 1226 WRF 120 2×6 Primed 2×6 120×120 356×790 27.02 59.571
71 1000 1227 WRF 120 2×7 Primed 2×7 120×120 356×920 31.45 69.331
71 1000 1228 WRF 120 2×8 Primed 2×8 120×120 356×1050 35.88 79.093
71 1000 1231 WRF 120 3×1 Primed 3×1 120×120 514×140 7.02 15.470
71 1000 1232 WRF 120 3×2 Primed 3×2 120×120 534×270 14.48 31.916
71 1000 1233 WRF 120 3×3 Primed 3×3 120×120 534×400 20.63 45.475
71 1000 1234 WRF 120 3×4 Primed 3×4 120×120 534×530 27.43 60.477
71 1000 1235 WRF 120 3×5 Primed 3×5 120×120 534×660 34.24 75.480
71 1000 1236 WRF 120 3×6 Primed 3×6 120×120 534×790 41.04 90.482
71 1000 1811 WRF 180 1×1 Primed 1×1 180×120 238×140 3.31 7.300
71 1000 1812 WRF 180 1×2 Primed 1×2 180×120 238×270 5.64 12.436
71 1000 1813 WRF 180 1×3 Primed 1×3 180×120 238×400 7.97 17.575
71 1000 1814 WRF 180 1×4 Primed 1×4 180×120 238×530 10.30 22.714
71 1000 1815 WRF 180 1×5 Primed 1×5 180×120 238×660 12.63 27.844
71 1000 1816 WRF 180 1×6 Primed 1×6 180×120 238×790 14.99 33.047
71 1000 1817 WRF 180 1×7 Primed 1×7 180×120 238×920 17.32 38.184
71 1000 1818 WRF 180 1×8 Primed 1×8 180×120 238×1050 19.65 43.321
71 1000 1819 WRF 180 1×9 Primed 1×9 180×120 238×1180 21.98 48.458
71 1000 1821 WRF 180 2×1 Primed 2×1 180×120 466×140 6.01 13.241
71 1000 1822 WRF 180 2×2 Primed 2×2 180×120 476×270 11.32 24.963
71 1000 1823 WRF 180 2×3 Primed 2×3 180×120 476×400 15.98 35.239
71 1000 1824 WRF 180 2×4 Primed 2×4 180×120 476×530 20.65 45.514
71 1000 1825 WRF 180 2×5 Primed 2×5 180×120 476×660 25.31 55.792
71 1000 1826 WRF 180 2×6 Primed 2×6 180×120 476×790 29.97 66.068
71 1000 1827 WRF 180 2×7 Primed 2×7 180×120 476×920 35.94 79.234
71 1000 1828 WRF 180 2×8 Primed 2×8 180×120 476×1050 40.93 90.233
71 1000 1829 WRF 180 2×9 Primed 2×9 180×120 476×1180 45.92 101.232
71 1000 1820 WRF 180 2×10 Primed 2×10 180×120 476×1310 50.91 112.231
71 1000 1831 WRF 180 3×1 Primed 3×1 180×120 694×140 8.70 19.185
71 1000 2411 WRF 240 1×1 Primed 1×1 240×120 298×140 3.87 8.536
71 1000 2412 WRF 240 1×2 Primed 1×2 240×120 298×270 6.48 14.295
71 1000 2413 WRF 240 1×3 Primed 1×3 240×120 298×400 9.10 20.051
71 1000 2414 WRF 240 1×4 Primed 1×4 240×120 298×530 11.71 25.816
71 1000 2415 WRF 240 1×5 Primed 1×5 240×120 298×660 14.32 31.570
71 1000 2416 WRF 240 1×6 Primed 1×6 240×120 298×790 16.93 37.324
71 1000 2421 WRF 240 2×1 Primed 2×1 240×120 586×140 7.13 15.719
71 1000 2422 WRF 240 2×2 Primed 2×2 240×120 596×270 13.01 28.678
71 1000 2423 WRF 240 2×3 Primed 2×3 240×120 596×400 18.23 40.192
71 1000 2424 WRF 240 2×4 Primed 2×4 240×120 596×530 23.78 52.430
71 1000 2425 WRF 240 2×5 Primed 2×5 240×120 596×660 29.33 64.666
71 1000 2426 WRF 240 2×6 Primed 2×6 240×120 596×790 34.88 76.904
71 1000 2427 WRF 240 2×7 Primed 2×7 240×120 596×920 40.43 89.140
71 1000 2428 WRF 240 2×8 Primed 2×8 240×120 596×1050 45.98 101.377
71 1000 2429 WRF 240 2×9 Primed 2×9 240×120 596×1180 51.53 113.613
71 1000 2420 WRF 240 2×10 Primed 2×10 240×120 596×1310 57.09 125.851
71 1000 2431 WRF 240 3×1 Primed 3×1 240×120 874×140 10.39 22.899
Picture SKU Product name Openings Packing space (mm) External nominal dimensions (HxW D=60mm) Weight (kg) Weight (lb)
71 1001 0611 WRF 60 1×1 AISI 316 1×1 60×120 118×140 2.24 4.938
71 1001 0612 WRF 60 1×2 AISI 316 1×2 60×120 118×270 4.06 8.951
71 1001 0613 WRF 60 1×3 AISI 316 1×3 60×120 118×400 5.87 12.946
71 1001 0614 WRF 60 1×4 AISI 316 1×4 60×120 118×530 7.69 16.945
71 1001 0615 WRF 60 1×5 AISI 316 1×5 60×120 118×660 9.50 20.948
71 1001 0616 WRF 60 1×6 AISI 316 1×6 60×120 118×790 11.32 24.952
71 1001 1211 WRF 120 1×1 AISI 316 1×1 120×120 178×140 2.82 6.217
71 1001 1212 WRF 120 1×2 AISI 316 1×2 120×120 178×270 4.92 10.851
71 1001 1213 WRF 120 1×3 AISI 316 1×3 120×120 178×400 7.02 15.476
71 1001 1214 WRF 120 1×4 AISI 316 1×4 120×120 178×530 9.03 19.908
71 1001 1215 WRF 120 1×5 AIS I316 1×5 120×120 178×660 11.04 24.339
71 1001 1216 WRF 120 1×6 AISI 316 1×6 120×120 178×790 13.05 28.770
71 1001 1221 WRF 120 2×1 AISI 316 2×1 120×120 346×140 5.00 11.023
71 1001 1231 WRF 120 3×1 AISI 316 3×1 120×120 514×140 6.60 14.550
71 1001 1811 WRF 180 1×1 AISI 316 1×1 180×120 238×140 3.40 7.487
71 1001 1812 WRF 180 1×2 AISI 316 1×2 180×120 238×270 5.79 12.756
71 1001 1813 WRF 180 1×3 AISI 316 1×3 180×120 238×400 8.18 18.025
71 1001 1814 WRF 180 1×4 AISI 316 1×4 180×120 238×530 10.57 23.294
71 1001 1815 WRF 180 1×5 AISI 316 1×5 180×120 238×660 12.96 28.563
71 1001 1816 WRF 180 1×6 AISI 316 1×6 180×120 238×790 15.36 33.854
71 1001 1821 WRF 180 2×1 AISI 316 2×1 180×120 466×140 6.16 13.580
71 1001 2411 WRF 240 1×1 AISI 316 1×1 240×120 298×140 3.97 8.757
71 1001 2412 WRF 240 1×2 AISI 316 1×2 240×120 298×270 6.65 14.661
71 1001 2413 WRF 240 1×3 AISI 316 1×3 240×120 298×400 9.33 20.569
71 1001 2414 WRF 240 1×4 AISI 316 1×4 240×120 298×530 12.01 26.475
71 1001 2415 WRF 240 1×5 AISI 316 1×5 240×120 298×660 14.69 32.381
71 1001 2416 WRF 240 1×6 AISI 316 1×6 240×120 298×790 17.37 38.287
71 1001 2421 WRF 240 2×1 AISI 316 2×1 240×120 586×140 7.31 16.120
71 1001 2431 WRF 240 3×1 AISI 316 3×1 240×120 874×140 10.65 23.486
Picture SKU Product name Openings Packing space (mm) External nominal dimensions (HxW D=60mm) Weight (kg) Weight (lb)
71 1002 0611 WRF 60 1×1 AL 1×1 60×120 118×140 0.76 1.669
71 1002 0612 WRF 60 1×2 AL 1×2 60×120 118×270 1.37 3.020
71 1002 0613 WRF 60 1×3 AL 1×3 60×120 118×400 1.98 4.365
71 1002 0614 WRF 60 1×4 AL 1×4 60×120 118×530 2.59 5.719
71 1002 0615 WRF 60 1×5 AL 1×5 60×120 118×660 3.21 7.070
71 1002 0616 WRF 60 1×6 AL 1×6 60×120 118×790 3.82 8.424
71 1002 0621 WRF 60 2×1 AL 2×1 60×120 226×140 1.30 2.870
71 1002 0631 WRF 60 3×1 AL 3×1 60×120 334×140 1.85 4.070
71 1002 1211 WRF 120 1×1 AL 1×1 120×120 178×140 0.95 2.094
71 1002 1212 WRF 120 1×2 AL 1×2 120×120 178×270 1.66 3.662
71 1002 1213 WRF 120 1×3 AL 1×3 120×120 178×400 2.37 5.255
71 1002 1214 WRF 120 1×4 AL 1×4 120×120 178×530 3.08 6.790
71 1002 1215 WRF 120 1×5 AL 1×5 120×120 178×660 3.79 8.356
71 1002 1216 WRF 120 1×6 AL 1×6 120×120 178×790 4.50 9.921
71 1002 1221 WRF 120 2×1 AL 2×1 120×120 346×140 1.61 3.547
71 1002 1222 WRF 120 2×2 AL 2×2 120×120 356×270 3.34 7.355
71 1002 1223 WRF 120 2×3 AL 2×3 120×120 356×400 4.78 10.527
71 1002 1224 WRF 120 2×4 AL 2×4 120×120 356×530 6.36 14.017
71 1002 1231 WRF 120 3×1 AL 3×1 120×120 514×140 2.43 5.355
71 1002 1811 WRF 180 1×1 AL 1×1 180×120 238×140 1.15 2.535
71 1002 1812 WRF 180 1×2 AL 1×2 180×120 238×270 1.95 4.299
71 1002 1813 WRF 180 1×3 AL 1×3 180×120 238×400 2.76 6.085
71 1002 1814 WRF 180 1×4 AL 1×4 180×120 238×530 3.57 7.862
71 1002 1815 WRF 180 1×5 AL 1×5 180×120 238×660 4.37 9.634
71 1002 1816 WRF 180 1×6 AL 1×6 180×120 238×790 5.18 11.409
71 1002 1821 WRF 180 2×1 AL 2×1 180×120 466×140 2.08 4.583
71 1002 1822 WRF 180 2×2 AL 2×2 180×120 476×270 3.92 8.640
71 1002 1823 WRF 180 2×3 AL 2×3 180×120 476×400 5.55 12.242
71 1002 1824 WRF 180 2×4 AL 2×4 180×120 476×530 7.29 16.072
71 1002 1825 WRF 180 2×5 AL 2×5 180×120 476×660 9.03 19.901
71 1002 1826 WRF 180 2×6 AL 2×6 180×120 476×790 10.76 23.731
71 1002 1831 WRF 180 3×1 AL 3×1 180×120 694×140 3.01 6.640
71 1002 2411 WRF 240 1×1 AL 1×1 240×120 298×140 1.34 2.954
71 1002 2412 WRF 240 1×2 AL 1×2 240×120 298×270 2.24 4.938
71 1002 2413 WRF 240 1×3 AL 1×3 240×120 298×400 3.15 6.945
71 1002 2414 WRF 240 1×4 AL 1×4 240×120 298×530 4.06 8.940
71 1002 2415 WRF 240 1×5 AL 1×5 240×120 298×660 4.96 10.935
71 1002 2416 WRF 240 1×6 AL 1×6 240×120 298×790 5.87 12.930
71 1002 2421 WRF 240 2×1 AL 2×1 240×120 586×141 2.47 5.441
71 1002 2431 WRF 240 3×1 AL 3×1 240×120 874×141 3.60 7.926

Note: weights are approx.
