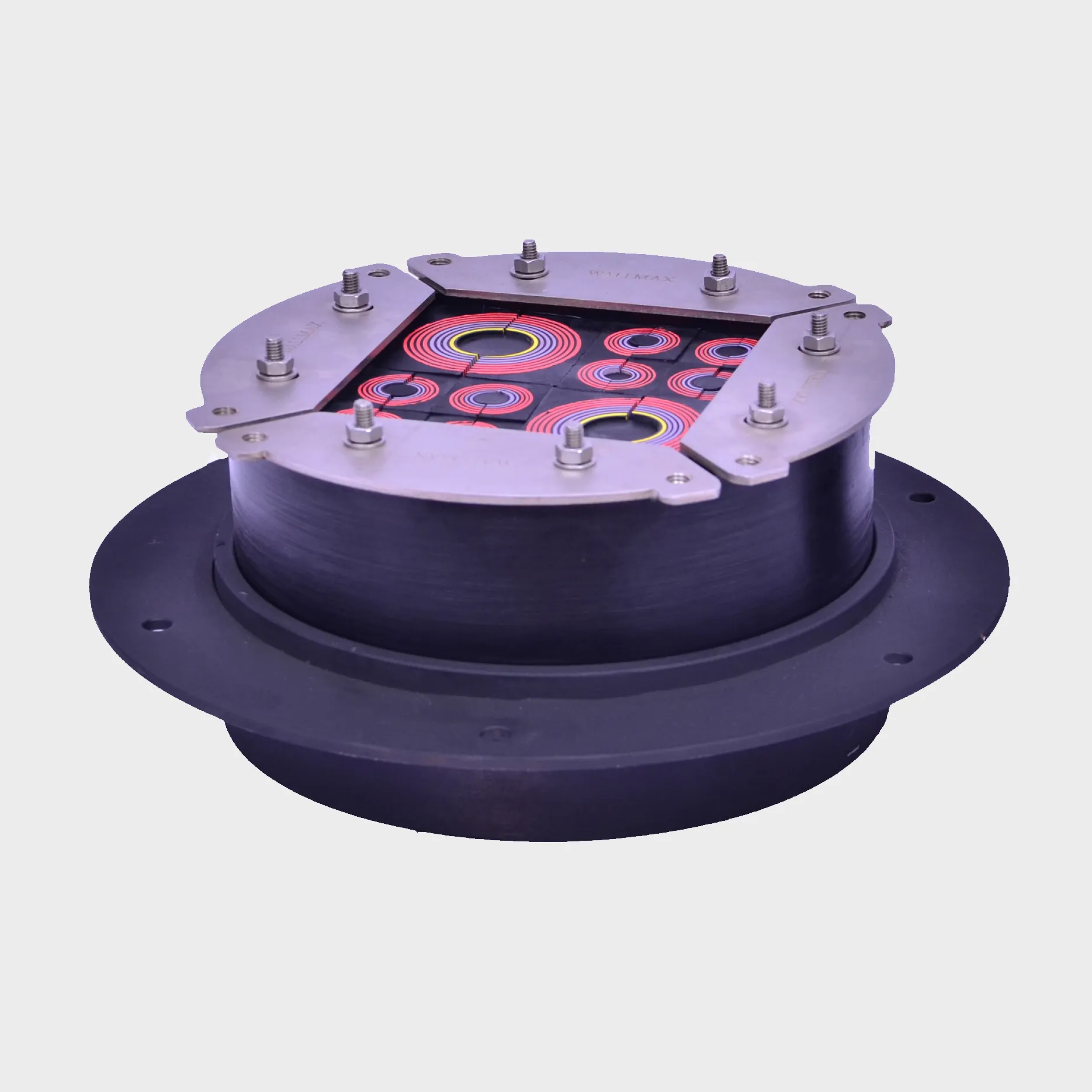

WallMax® round squared frame (WRS)

WallMax® Round Squared frames are round structures with an inner, squared packing space that accommodates modules of the WMR series.

Multiple dimensions of packing space are offered to allow for maximum variety in module combination and maximum adaptability.

Sealing of passages is obtained through tightening of the bolts on the flange, with no need for use of an expander or retainer plates.

WRS frames can be completed and mounted with an additional external sleeve, which is sold separately as an accessory.

The WRS frames are available in different materials and allow for customization of entry solutions.

SKU	Product name	Wall opening øA-øB (mm)	Packing space (mm)	Weight (kg)	Weight (lb)
71 1101 0070	WRS 70 AISI 316	71-72	40×40	0.43	0.952
71 1101 0075	WRS 75 AISI 316	76-77	40×40	0.49	1.076
71 1101 0100	WRS 100 AISI 316	101-102	60×60	0.72	1.581
71 1101 0125	WRS 125 AISI 316	126-127	80×80	1.04	2.282
71 1101 0127	WRS 127 AISI 316	128-129	80×80	1.07	2.350
71 1101 0150	WRS 150 AISI 316	151-152	90×90	1.50	3.316
71 1101 0200	WRS 200 AISI 316	201-202	120×120	2.48	5.459
71 1103 0070	WRS 70 Galv	71-72	40×40	0.43	0.939
71 1103 0075	WRS 75 Galv	76-77	40×40	0.48	1.065
71 1103 0100	WRS 100 Galv	101-102	60×60	0.71	1.554
71 1103 0125	WRS 125 Galv	126-127	80×80	1.02	2.253
71 1103 0127	WRS 127 Galv	126-127	80×80	1.05	2.321
71 1103 0150	WRS 150 Galv	151-152	90×90	1.48	3.272
71 1103 0200	WRS 200 Galv	201-202	120×120	2.45	5.393

Note: weights are approx.
