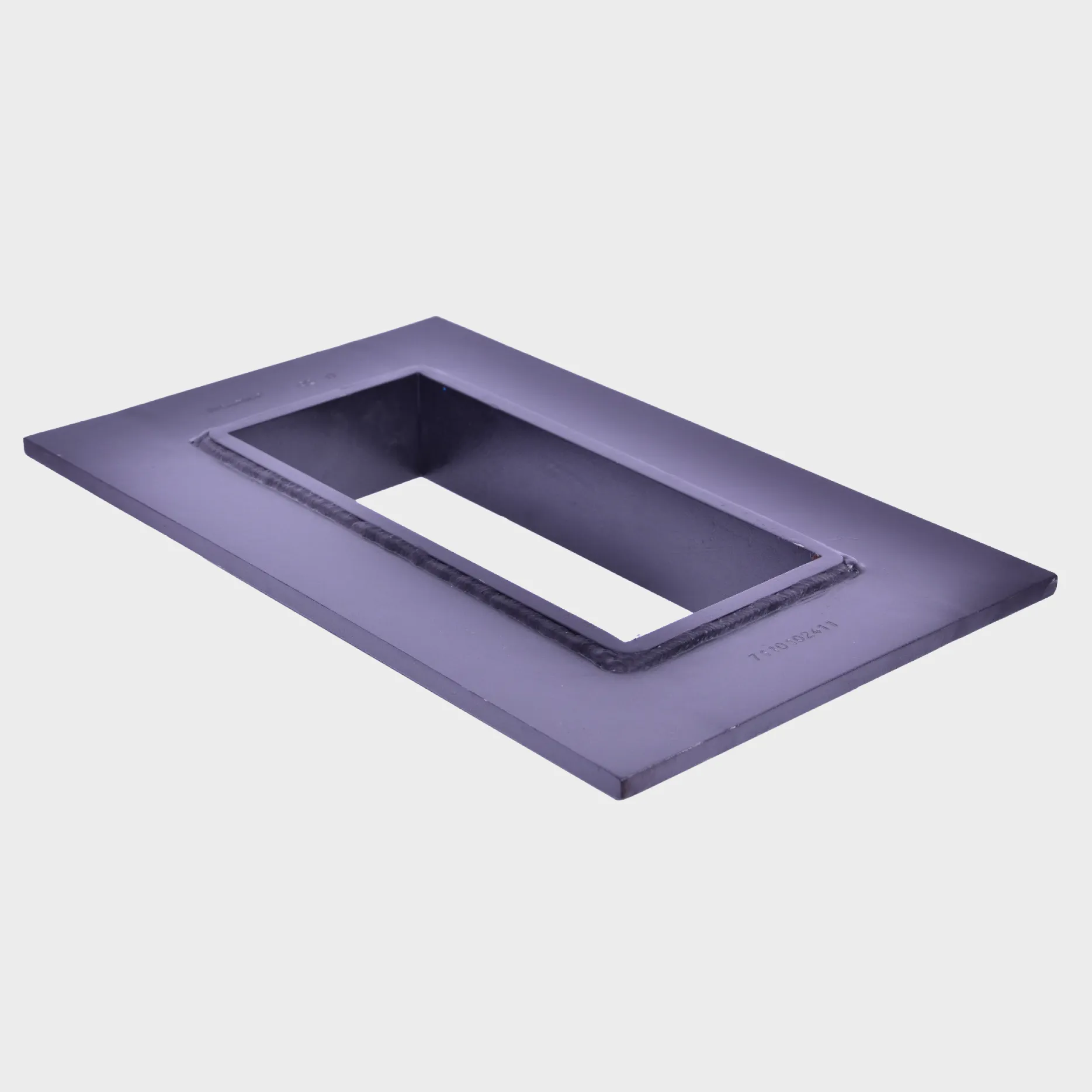

WallMax® rectangular flanged frame (WRFF)

WallMax® Rectangular Flanged Frames are metal structures with a 10mm thick flange, and single or multiple openings.

Several combinations of sizes and materials are made available, and customised solutions for cable passages can be developed according to customers’ needs.

WRFF are designed for installation through casting in the wall or welding.

WRFF frames are used in combination with WMR series and accessories to create personalised cable transit solutions.

Different combinations of modules can be accommodated, according to customer needs.


Contact us to enquire

Picture SKU Product name Openings Packing space (mm) External nominal dimensions (HxW D=60mm) Weight (kg) Weight (lb)
71 1010 0611 WRFF 60 1×1 Primed 1×1 60×120 238×260 5.77 12.712
71 1010 0612 WRFF 60 1×2 Primed 1×2 60×120 238×390 8.85 19.450
71 1010 0613 WRFF 60 1×3 Primed 1×3 60×120 238×520 11.93 26.290
71 1010 0614 WRFF 60 1×4 Primed 1×4 60×120 238×650 15.00 33.079
71 1010 0615 WRFF 60 1×5 Primed 1×5 60×120 238×780 18.08 39.868
71 1010 0616 WRFF 60 1×6 Primed 1×6 60×120 238×910 21.16 46.658
71 1010 1211 WRFF 120 1×1 Primed 1×1 120×120 298×260 6.89 15.188
71 1010 1212 WRFF 120 1×2 Primed 1×2 120×120 298×390 10.25 22.595
71 1010 1213 WRFF 120 1×3 Primed 1×3 120×120 298×520 13.61 30.003
71 1010 1214 WRFF 120 1×4 Primed 1×4 120×120 298×650 16.97 37.410
71 1010 1215 WRFF120 1×5 Primed 1×5 120×120 298×780 20.33 44.818
71 1010 1216 WRFF 120 1×6 Primed 1×6 120×120 298×910 23.69 52.225
71 1010 1221 WRFF 120 2×1 Primed 2×1 120×120 466×260 10.60 23.360
71 1010 1231 WRFF 120 3×1 Primed 3×1 120×120 630×260 14.96 32.975
71 1010 1811 WRFF 180 1×1 Primed 1×1 180×120 358×260 8.01 17.663
71 1010 1812 WRFF 180 1×2 Primed 1×2 180×120 358×390 11.65 25.693
71 1010 1813 WRFF 180 1×3 Primed 1×3 180×120 358×520 15.29 33.717
71 1010 1814 WRFF 180 1×4 Primed 1×4 180×120 358×650 18.94 41.745
71 1010 1815 WRFF 180 1×5 Primed 1×5 180×120 358×780 22.58 49.772
71 1010 1816 WRFF 180 1×6 Primed 1×6 180×120 358×910 26.22 57.799
71 1010 1821 WRFF 180 2×1 Primed 2×1 180×120 586×260 12.84 28.312
71 1010 1822 WRFF 180 2×2 Primed 2×2 180×120 596×390 19.56 43.127
71 1010 1823 WRFF 180 2×3 Primed 2×3 180×120 596×520 25.53 56.293
71 1010 1824 WRFF 180 2×4 Primed 2×4 180×120 596×650 31.88 70.283
71 1010 1825 WRFF 180 2×5 Primed 2×5 180×120 596×780 38.23 84.274
71 1010 1826 WRFF 180 2×6 Primed 2×6 180×120 596×910 44.57 98.264
71 1010 1827 WRFF 180 2×7 Primed 2×7 180×120 596×1040 50.92 112.255
71 1010 1828 WRFF 180 2×8 Primed 2×8 180×120 596×1170 57.26 126.246
71 1010 1829 WRFF 180 2×9 Primed 2×9 180×120 596×1300 63.61 140.236
71 1010 1820 WRFF 180 2×10 Primed 2×10 180×120 596×1430 69.96 154.227
71 1010 1831 WRFF 180 3×1 Primed 3×1 180×120 814×260 16.48 36.332
71 1010 2411 WRFF 240 1X1 Primed 1×1 240×120 418×260 9.14 20.139
71 1010 2412 WRFF 240 1X2 Primed 1×2 240×120 418×390 13.06 28.786
71 1010 2413 WRFF 240 1X3 Primed 1×3 240×120 418×520 16.98 37.432
71 1010 2414 WRFF 240 1X4 Primed 1×4 240×120 418×650 20.90 46.079
71 1010 2415 WRFF 240 1X5 Primed 1×5 240×120 418×780 24.82 54.725
71 1010 2416 WRFF 240 1X6 Primed 1×6 240×120 418×910 28.75 63.732
71 1010 2421 WRFF 240 2X1 Primed 2×1 240×120 706×260 15.09 33.263
71 1010 2422 WRFF 240 2X2 Primed 2×2 240×120 716×390 22.37 49.317
71 1010 2423 WRFF 240 2X3 Primed 2×3 240×120 716×520 28.90 63.722
71 1010 2424 WRFF 240 2X4 Primed 2×4 240×120 716×650 35.81 78.952
71 1010 2425 WRFF 240 2X5 Primed 2×5 240×120 716×780 42.72 94.181
71 1010 2426 WRFF 240 2X6 Primed 2×6 240×120 716×910 49.63 109.411
71 1010 2427 WRFF 240 2X7 Primed 2×7 240×120 716×1040 56.54 124.651
71 1010 2428 WRFF 240 2X8 Primed 2×8 240×120 716×1170 63.44 139.870
71 1010 2429 WRFF 240 2X9 Primed 2×9 240×120 716×1300 70.35 155.100
71 1010 2420 WRFF 240 2X10 Primed 2×10 240×120 716×1430 77.26 170.329
71 1010 2431 WRFF 240 3X1 Primed 3×1 240×120 994×260 21.70 47.831
Picture SKU Product name Openings Packing space (mm) External nominal dimensions (HxW D=60mm) Weight (kg) Weight (lb)
71 1011 0611 WRFF 60 1×1 AISI 316 1×1 60×120 238×260 5.91 13.038
71 1011 1211 WRFF 120 1×1 AISI 316 1×1 120×120 298×260 7.07 15.578
71 1011 1212 WRFF 120 1×2 AISI 316 1×2 120×120 298×390 10.51 23.175
71 1011 1213 WRFF 120 1×3 AISI 316 1×3 120×120 298×520 13.96 30.772
71 1011 1214 WRFF 120 1×4 AISI 316 1×4 120×120 298×650 17.40 38.369
71 1011 1811 WRFF 180 1×1 AISI 316 1×1 180×120 358×260 8.22 18.118
71 1011 1812 WRFF 180 1×2 AISI 316 1×2 180×120 358×390 11.95 26.350
71 1011 1813 WRFF 180 1×3 AISI 316 1×3 180×120 358×520 15.69 34.582
71 1011 1814 WRFF 180 1×4 AISI 316 1×4 180×120 358×650 19.42 42.814
71 1011 2411 WRFF 240 1X1 AISI 316 1×1 240×120 418×260 9.37 20.657
71 1011 2412 WRFF 240 1X2 AISI 316 1×2 240×120 418×390 13.39 29.524
71 1011 2413 WRFF 240 1X3 AISI 316 1×3 240×120 418×520 17.41 38.391
71 1011 2414 WRFF 240 1X4 AISI 316 1×4 240×120 418×650 21.44 47.258
Picture SKU Product name Openings Packing space (mm) External nominal dimensions (HxW D=60mm) Weight (kg) Weight (lb)
71 1012 0621 WRFF 60 2X1 AL 2×1 60×120 346×260 2.89 6.371
71 1012 1211 WRFF 120 1X1 AL 1×1 120×120 300×260 2.39 5.258
71 1012 1212 WRFF 120 1X2 AL 1×2 120×120 300×390 3.55 7.822
71 1012 1213 WRFF 120 1X3 AL 1×3 120×120 300×520 4.71 11.386
71 1012 1214 WRFF 120 1X4 AL 1×4 120×120 300×650 5.87 12.950
71 1012 1811 WRFF 180 1X1 AL 1×1 180×120 358×260 2.77 6.113
71 1012 1812 WRFF 180 1X2 AL 1×2 180×120 358×390 4.03 8.893
71 1012 1813 WRFF 180 1X3 AL 1×3 180×120 358×520 5.29 11.671
71 1012 1814 WRFF 180 1X4 AL 1×4 180×120 358×650 6.56 14.450
71 1012 2411 WRFF 240 1X1 AL 1×1 240×120 418×260 3.16 6.971
71 1012 2412 WRFF 240 1X2 AL 1×2 240×120 418×390 4.52 9.965
71 1012 2413 WRFF 240 1X3 AL 1×3 240×120 418×520 5.88 12.957
71 1012 2414 WRFF 240 1X4 AL 1×4 240×120 418×650 7.24 15.950

Note: weights are approx.
