Divisible duct seals 12mm

Filoform divisible duct sealing sets for subducts have been developed to provide and effective and simple solution to all Gas and Watertight duct sealing requirements.

This modular system enables you to install it easily onto to new and existing installations. Due to the compact design the seals can be installed in all situations, even in locations with difficult access.

For use on subducts of 12mm.

PATENTED

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Gas and Watertight up to 0,5 bar.
Suitable for retrofitting.
Easy installation.
Slim design.
Other versions available upon request.

Specifications

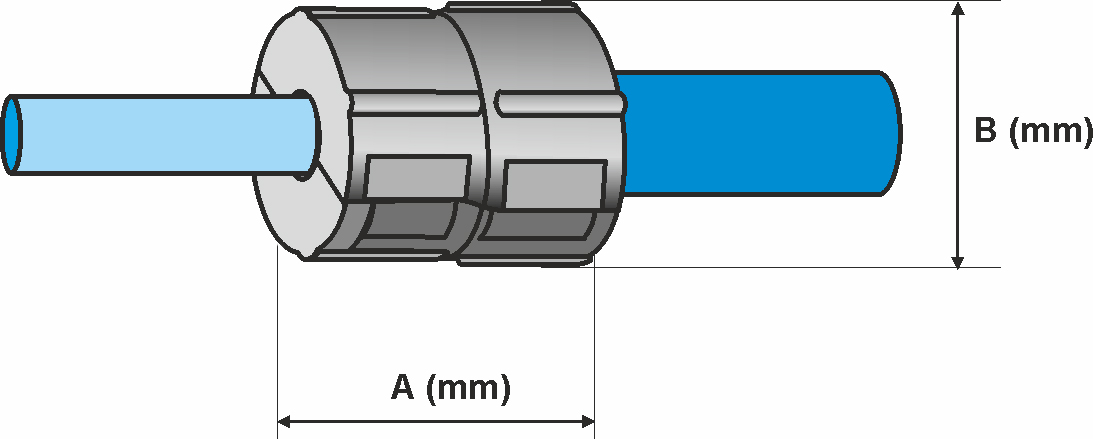

Dimensions	A (mm)	B (mm)	Weight (gr.)
Duct seal 12mm	30	24	12

Material specification

Properties	Value
Plastic scales	glassfibre reinforced
Cutting block	glassfibre reinforced
Sealing plug	silicone
Sealing	up to 0,5 bar
Pull-out force duct seal vs duct	≥ 120N
Mechanical compression strength	≥ 1000N, 10 sec.

More info

More Information
More information	Contents 2 pieces of plastic shells with click together fixings 1 piece cutting block 1 rubber seal Illustrated installation instructions
Home page product list	No

Videos

Click here to download the video.

Products

Grouped product items
Sku	Product Name	Colour	Cable Diameter (mm)	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit
822812.0	Duct seal 12mm / 2,5-1,5mm	purple	2,5-1,5	Order unit 25 pcs/carton
822812.1	Duct seal 12mm / 3,5-2,5mm	light blue	3,5-2,5	Order unit 25 pcs/carton
822812.2	Duct seal 12mm / 5,0-3,5mm	green	5,0-3,5	Order unit 25 pcs/carton
822812.3	Duct seal 12mm / 6,5-5,0mm	red	6,5-5,0	Order unit 25 pcs/carton
822812.4	Duct seal 12mm / 8,0-6,5mm	dark blue	8,0-6,5	Order unit 25 pcs/carton
822812.5	Duct seal 12mm / 8,5-7,0mm	light blue	8,5-7,0	Order unit 25 pcs/carton
