Divisible mini/micro duct seal 10mm

Go Back

For easy gas- and watertight sealing of cables in miniducts.

The miniduct seal is easy to mount on new installations and existing installations. Thanks to the clever design, shifting the seal over the fiber now belongs to the past. Due to the compact design this seal can be installed in every situation, even in locations with difficult access.

Download product sheet
  • Gas- and water tight up to 0,5 bar
  • Suitable for retro fitting
  • Easy installation

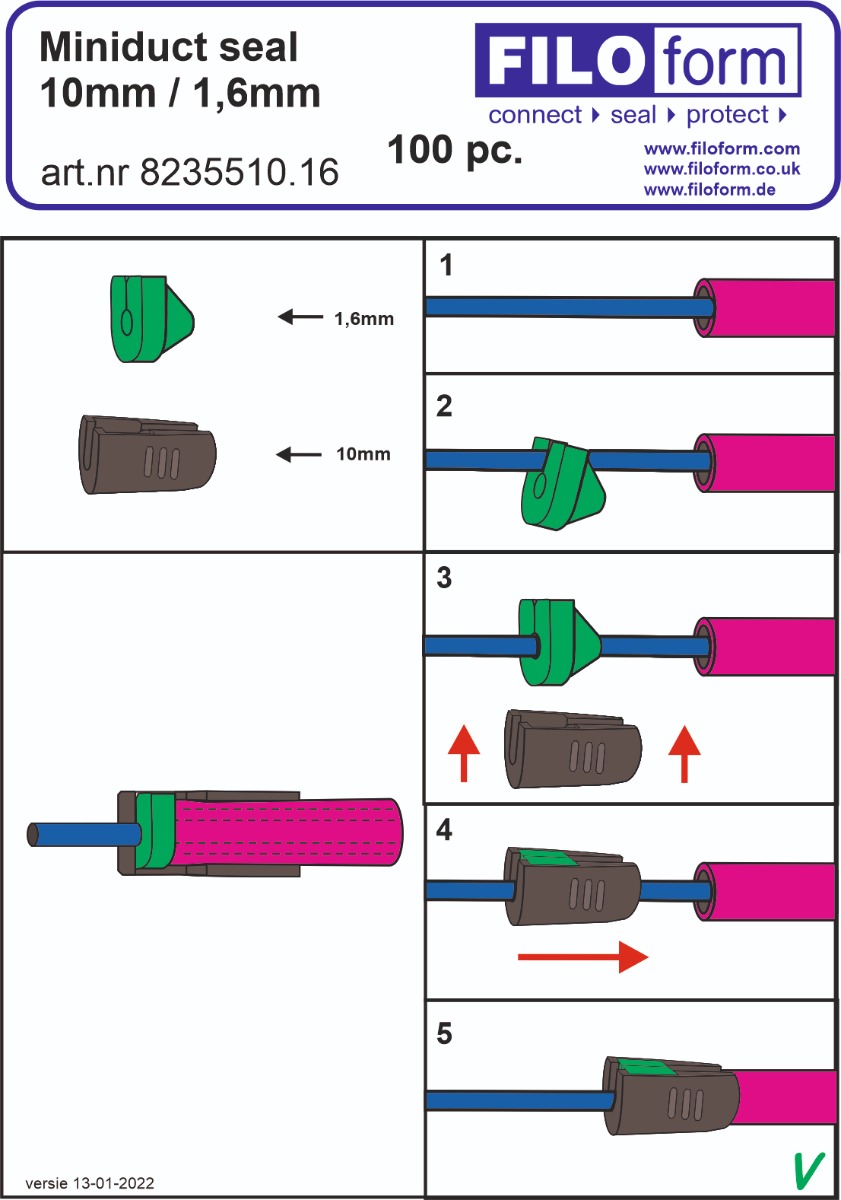

  • No need to slide the seal over the glass fibre for installation
  • Slim design
  • Other versions available upon request
  • Suitable for ducts with smooth inner surface



Click here to select the correct product

Selection table

Properties Value

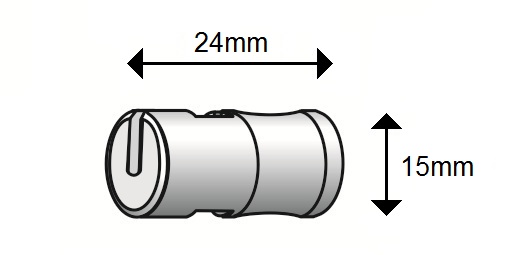

Dimensions 24mm x 15mm
Plastic Housing PC based
Sealing plug TPE
Sealing up to 0,5 bar

Pull strenght duct seal from the duct

Duct size Tensile force
OD 823554.x 823555.x 823556.x 823557.x 823558.x 8235510.x
4mm ≥40 N
5mm    ≥50 N
6mm     ≥60 N
7mm       ≥70 N
8mm         ≥80 N
10mm           ≥100 N
Values are indications, true values may depend on cables, duct and field installations.
The measure-speed is 100mm/min.
Temperature 20°C

miniduct 10mm

More Information
More information

Home page product list No

Click here to download the video.

Products
Grouped product items
Sku Product Name Colour

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
8235510.09 Miniduct seal 10mm/0,9mm purple Order unit 100 pcs/bag
8235510.125 Miniduct seal 10mm/1,25mm red Order unit 100 pcs/bag
8235510.16 Miniduct seal 10mm/1,6mm green Order unit 100 pcs/bag
8235510.21 Miniduct seal 10mm/2,1mm blue Order unit 100 pcs/bag
8235510.25 Miniduct seal 10mm/2,5mm yellow Order unit 100 pcs/bag
8235510.29 Miniduct seal 10mm/2,9mm orange Order unit 100 pcs/bag
8235510.33 Miniduct seal 10mm/3,3mm brown Order unit 100 pcs/bag
8235510.38 Miniduct seal 10mm/3,8mm gray Order unit 100 pcs/bag
