Duct sealing system FiloSeal+HD is a solution for sealing larger heavy cables and pipes in ducts, bore holes or transit frames.

  • Upto 2 bar Pressure Resistance
  • 100Kg pulling Force on the cables when sealed
  • 10xd at 45º, with 1 bar pressure bending test
Download product sheet

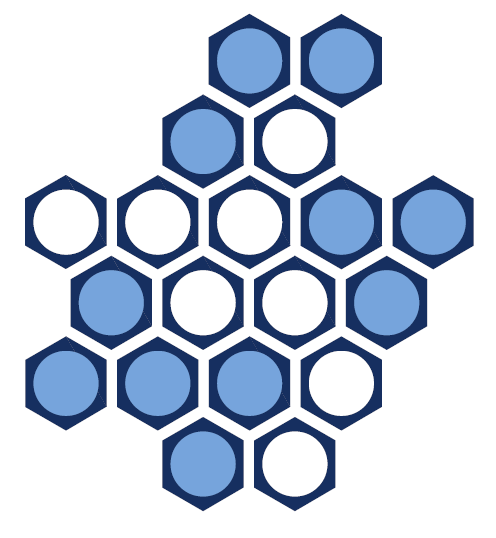

FiloSeal+HD provides a strong support system using the hexagonal tubes which builds up like a honeycomb structure. FiloSeal+HD  is suitable for sealing cable configuration or pipes contained in one duct and also allows easy re-entry of the seal to add or remove cables or pipes as required

The Filoform duct sealing system FiloSeal+HD uses our MD+ sealant which is easily applied from a skeleton gun. The high quality, one component, flexible sealant “MD+” is based on a silicon compound that cures with air (Humidity).

After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.


FiloSeal+HD is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses strong, but flexible hexagonal tubes to support the cable and provide a strong backing for the seal

The unique design of the hexagonal tubes makes positioning and separation of the cables very simple while also providing a strong backing for the MD+ to be applied on.

  • Flexible, one component, adhesive and sealing compound in a cartridge - (310ml)
  • High levels of Gas and Water tightness
  • Excellent adhesion, applicable to all common building materials
  • Shows Fire resistance properties
  • Resistant against Water, Alkaline, Chemical agents
  • Resistant to termites (Mastotermes Darwiniensis) Northern Australian termites
  • Resistant to Rats
  • Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
  • Non corrosive
  • Solvent free
  • Shock absorbing
  • Non toxic, neutral and almost odourless
  • Also suitable for limiting the EX-zones during transitions (observe chemical resistance)
  • Suitable for any shaped duct / bore hole / opening
  • Quick and easy installation
  • A complete kit
  • Seals common materials (PVC, PILC)
  • Suitable for renovations, can be installed retrospectively
  • Over 25 years of operational experience
Density 1.2 gr/cm³
Pressure resistance < 2mm  ISO 7390
Pulling Force 1000 N
Bend Test 10xd at 45º
Colour red-brown
Skin over time (23°C/55% r.F.) ± 15 minutes
Curing 3 mm / 24 hours
Hardness Shore A 30 DIN 53505
Elongation 100% DIN 53504
Tensile strength 0.8 N/mm² DIN 53504
Operating temperature +5°C to +40°C
Temperature resistance -40°C to +120°C
More Information
Home page product list No

Download the video here.

Download the video here.

Grouped product items
Sku Product Name Duct diameter min.-max. (mm) Maximum cable or pipe diameter in the duct (mm)

Enter the quantities you want to order / request.

Keep the quantities equal to the Order unit

Order unit
80204 FiloSeal+ HD 110mm Ø 110 max. Ø 80 max. Order unit per set
80205 FiloSeal+ HD 160mm Ø 160 max. Ø 130 max. Order unit per set
