Branch joints
Branch cast resin cable joints are suitable for plastic and paper insulated LV cables. These joints are suitable for use in power, telecoms and signalisation. The joints are approved in accordance with the standard DIN EN 50393 (VDE 0278-393):2006-11
Designed for UK armoured cables to allow plenty of room to work.

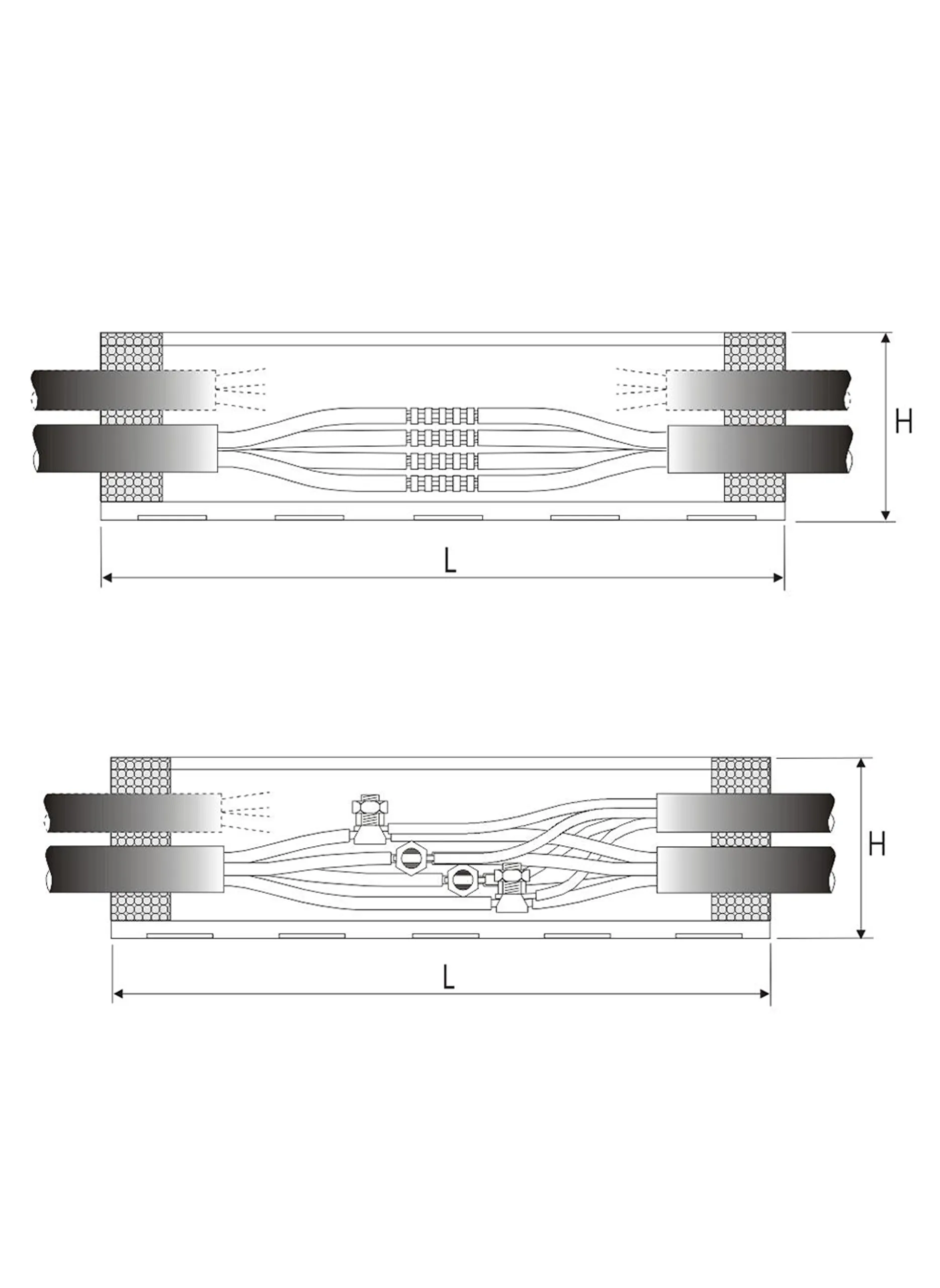

| SKU | Product Name | Cable Diameter (mm) | Dimensions (mm) | Order Unit |
|---|---|---|---|---|
| MB6 | MB6 | Ø 12 – 24 | 220 x 76 | per piece |
| MB16 | MB16 | Ø 09 – 25 | 335 x 120 | per piece |
| MB35 | MB35 | Ø 08 – 30 | 420 x 135 | per piece |
| MB70 | MB70 | Ø 15 – 40 | 485 x 120 | per piece |
| MB120 | MB120 | Ø 20- 55 | 655 x 165 | per piece |
| MB300 | MB300 | Ø 65 – 75 | 900 x 220 | per piece |
- The cast resin joints correspond to DIN VDE 0278 and can be used on all polymeric- and paper-insulated cables
- With hydrolysis-resistant PUR-cast resin
- Longitudinal and cross-waterproof
- High quality polycarbonate moulds

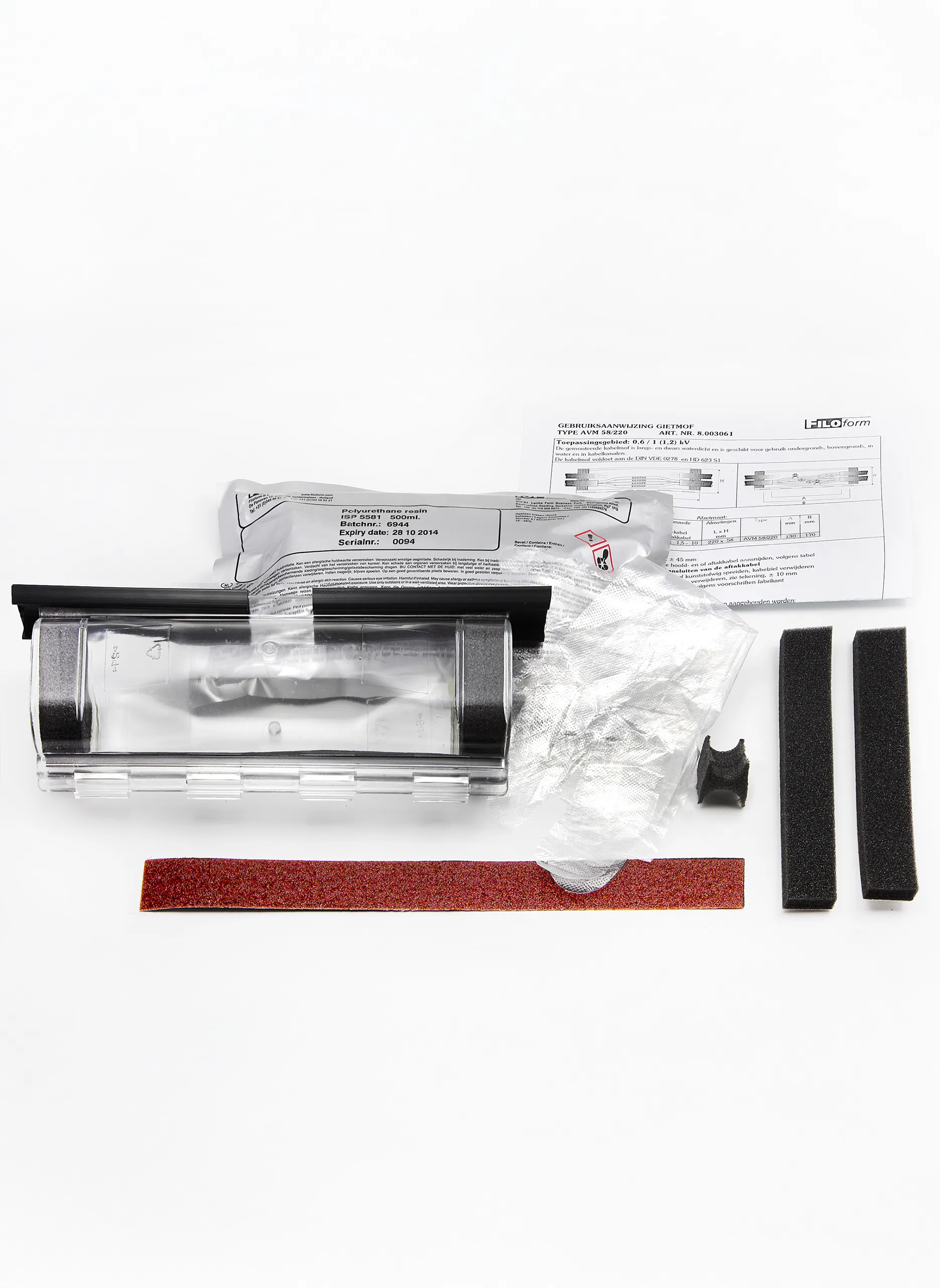

- Transparent 2-piece, cylindrical shells with pre-installed sealing strips
- Illustrated mounting instruction
- Simple and fast fitting
- Saves time and costs
| Size of conductor | 1 core armoured | 2 core armoured | 3 core armoured | 4 core armoured | 5 core armoured |
|---|---|---|---|---|---|
| 1.5mm² | N/A | MB 6 | MB 6 | MB 6 | MB 6* |
| 2.5mm² | N/A | MB 6 | MB 6 | MB 6 | MB 6* |
| 4mm² | N/A | MB 6 | MB 6 | MB 6 | MB 6* |
| 6mm² | N/A | MB 6 | MB 6 | MB 6 | MB 16* |
| 10mm² | N/A | MB 6 | MB 16 | MB 16 | MB 16* |
| 16mm² | N/A | MB 16 | MB 16 | MB 16 | MB 35* |
| 25mm² | N/A | MB 35 | MB 35 | MB 35 | MB 35* |
| 35mm² | N/A | MB 35 | MB 35 | MB 35 | MB 70* |
| 50mm² | MB 35* | MB 35* | MB 70* | MB 70* | MB 70* |
| 70mm² | MB 35* | MB 70 | MB 70* | MB 70* | MB 120* |
| 95mm² | MB 70* | MB 70* | MB 120* | MB 120* | MB 120* |
| 120mm² | MB 70* | MB 120* | MB 120* | MB 120* | MB 300* |
| 150mm² | MB 70* | MB 120* | MB 120* | MB 185* | MB 300* |
| 185mm² | MB 70* | MB 120* | MB 300* | MB 300* | MB 300* |
| 240mm² | MB 120* | MB 300* | MB 300* | MB 300* | MB 300* |
| 300mm² | MB 120* | MB 300* | MB 300* | MB 300* | N/A |
