Shrink tube TW green/yellow
- Electrical isolation
- Cable protection
- Bundling
- Identification

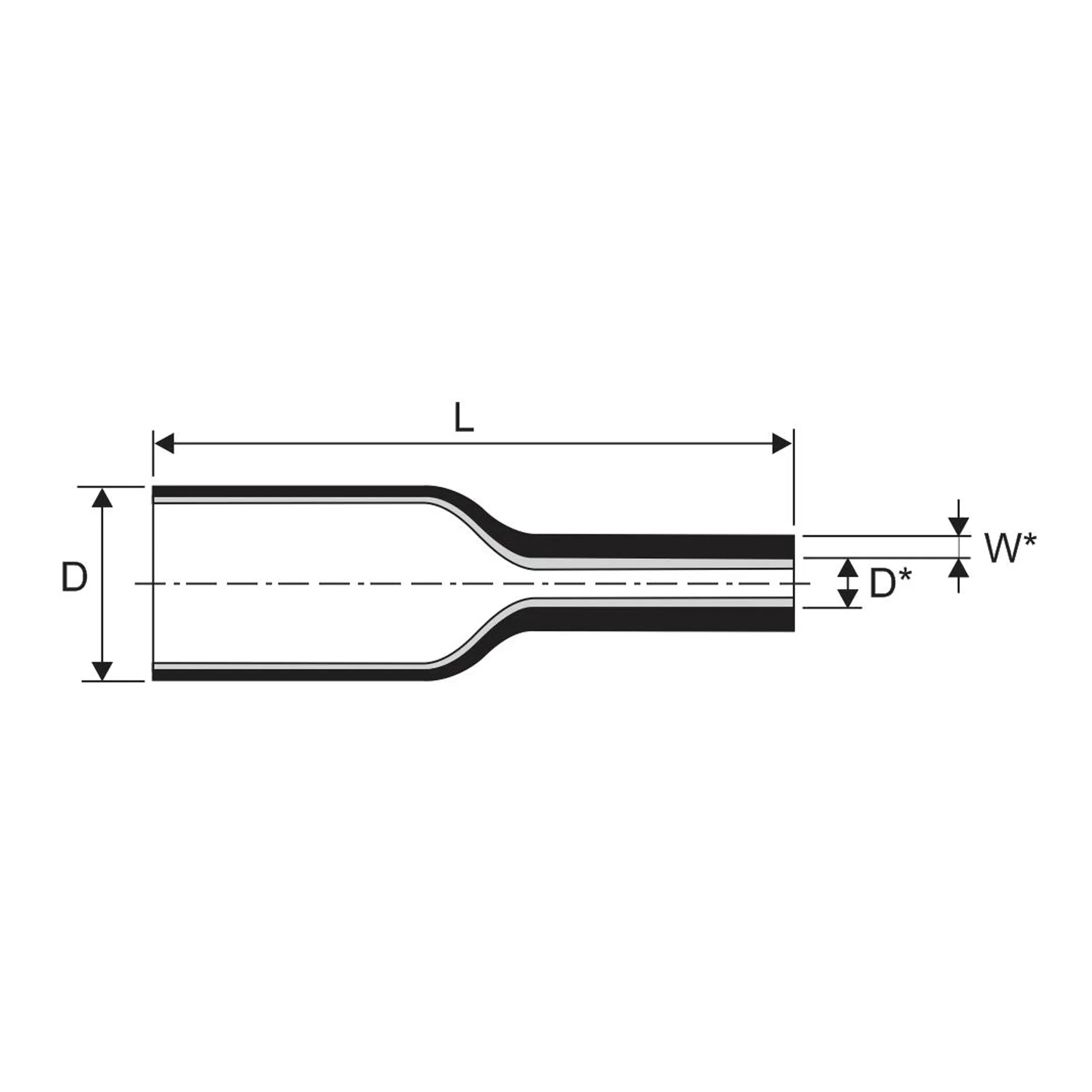

| SKU | Product Name | Diamater before shrink (mm) | Diameter after shrinkage (mm) | Wall thickness after shrink (mm) | Colour | Order Unit |
|---|---|---|---|---|---|---|
| 8.100300.11UK | Shrink tube TW green/yellow 3.2-1.6 | 3.2 | 1.6 | 0.43 | green/yellow | 200m roll |
| 8.100500.11UK | Shrink tube TW green/yellow 6.4-3.2 | 6.4 | 3.2 | 0.56 | green/yellow | 150m roll |
| 8.100700.11UK | Shrink tube TW green/yellow 12,7-6.4 | 12.7 | 6.4 | 0.56 | green/yellow | 50m roll |
| 8.100800.11UK | Shrink tube TW green/yellow 19,0-9,5 | 19.0 | 9.5 | 0.69 | green/yellow | 50m roll |
- Polyolefine crosslinked
- Fast recovery
- Shrink temperature 70°C till 100°C
- Continuous temperature range from -55°C till +125°C
- Good resistance against UV and chemicals
- Corrosion resistant
- Flame retardant
- Flexible
- Cadnium free
- Other colours on request: red, blue, yellow, green, white
| Material | Polyofine | |
| Shrink temperature | 70°C till 100°C | |
| Continuous temperature range | -55°C till +125°C | |
| Dielectric strength | ≥ 20 kV/mm | IEC 243 |
| Volume resistivity | > 1 x 10¹⁴ ohm cm | IEC 93 |
| Tensile strength | ≥ 14 Mpa | ASTM D 638-98 |
| Elongation at break | ≥ 400% | ASTM D 638-98 |
| Longitudinal change | ≤ 5% | UL 224 |
