QUICKI straight connection joint GTQ 1,5 – 2,5

Go Back

Application

  • Ideal for the use of cables and wires with small cross-sections.
  • For connecting and subsequent separating of connections, for example pond pump, Christmas illumination, etc.
  • Outdoor, underground, in water, installation ducts and interior




Download product sheet

Characteristics

  • UV-resistant
  • Mounting without special tools,
  • Shells made of solid, hit-proof polymeric material
  • Waterproof up to 1m water depth
  • Temperature resistant from -40°C bis +80°C
Cable
Ø mm
No. of cores, cross-section
mm²

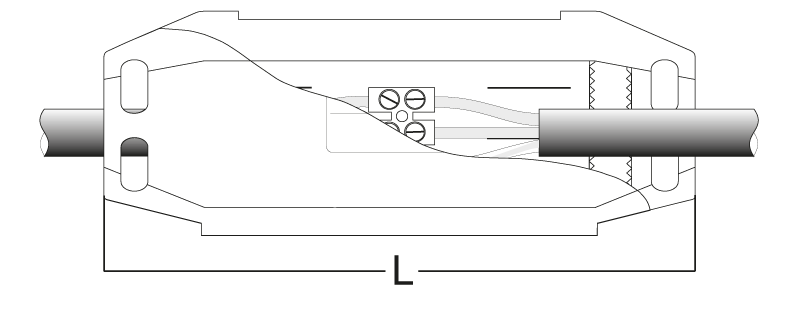

Dimensions
L x B x H mm
7 - 163x 1,5-2,5121 x 46 x 35

Set contents

  • Gel-filled shell with double seal
  • 3-pole connector
  • Cable ties
  • Installation instructions
GTQ 1,5 - 2,5GTQ 1,5 - 2,5
More Information
Home page product list No
Products
Grouped product items
Sku Product Name Dimensions (mm)

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
88001000 GTQ 1,5 - 2,5 121x46x35 Order unit per piece
